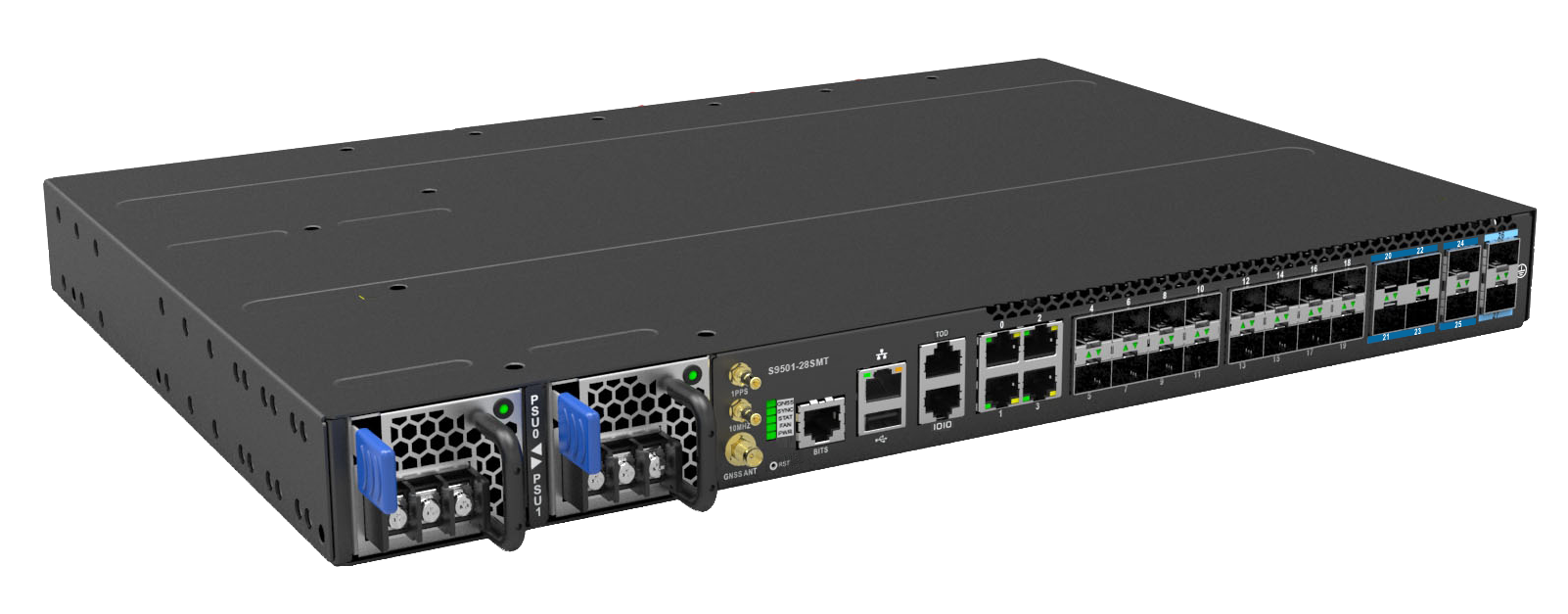

S9501-28SMT

28-Port, 1/10GE Disaggregated Cell Site Gateway

  • Full featured, Economic Cell Site Gateway
  • Supports SyncE and IEEE 1588

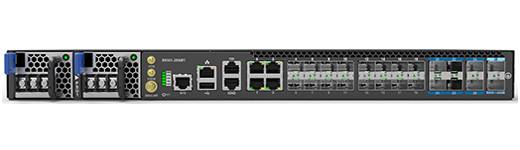

  • 4 x 100M/1GE RJ45 ports
  • 16 x 100M/1GE/2.5GE SFP ports
  • 8 x 1GE/2.5GE/10GE SFP+ ports
  • 1 x RJ45 serial console port
  • 1 x 1000 Base-T Ethernet port for Out-of-Band management
  • 1 x USB 2.0 Type-A general purpose port
  • GNSS, 1PPS, 10MHz, ToD, and BITS timing ports
OVERVIEW

The UfiSpace S9501-28SMT is a disaggregated cell site gateway (DCSG) that can aggregate legacy and current generation BBU equipment. It enables the deployment of open and disaggregated transport network services, while addressing the changing needs of the backhaul transport as telecoms make the transition from legacy technologies towards 5G New Radio (5G NR).

The S9501-28SMT is designed with high-speed interfaces (100M/1G serial RJ45, 1GE SFP and 10GE SFP+), full timing interfaces (ToD, BITS, 1PPS and 10MHz) and BMC for remote monitoring and managing capabilities. It is equipped with Broadcom's Qumran-UX merchant silicon chip and provides 120GB switching capacity, 125Mpps packet throughput and 1GB deep packet buffer to accommodate the evolving cell site requirements of 5G services.

Furthermore, UfiSpace's disaggregated cell site gateway routers are designed for outside plant installation, with temperature hardened case and comact size to fit into smaller cabinets. It is designed with hot swappable and field replaceable power supplies and fan units for convenience and easy maintenance.

For additional information, documentation or samples of our S9501-28SMT, please contact our sales team.

FEATURES
  • Utilizes UfiSpace timing module for Class C accuracy
  • Supports SyncE and IEEE 1588v2 (T-GM, T-BC/OC, T-TC, T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Rich timing input/output interfaces: ToD, BITS, 1PPS and 10MHz
  • Integrated GNSS receiver with passive or active antenna support
  • 1GB deep buffering
  • BMC for remote monitoring and management
  • 2 hot swappable power supplies with 1+1 redundancy support

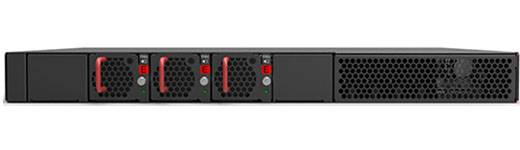

  • 3 hot swappable fan modules with 2+1 redundancy support
  • 1 RU compact design with 302mm depth suitable for standard 19" racks

For additional information, documentation or samples of our S9501-28SMT, please contact our sales team.

SPECIFICATIONS

For additional information, documentation or samples of our S9501-28SMT, please contact our sales team.

Physical
Processor Intel Denverton-NS C3508 4 Cores @1.6GHz
Memory 1x 8GB DDR4 SO-DIMM with ECC
Storage 1x 32GB SSD
ASIC Broadcom Qumran-UX BCM88270
Chassis 1RU, 440W x 43.5H x 302D mm (17.32" x 1.713" x 11.89")
Weight: 6.6 kg (14.55 lbs)
Redundancy Hot swappable, 1+1 redundant PSU
Hot swappable, 2+1 redundant fans
Environmental
Power supply AC input: 100 ~ 240V, 3~1.5A, 50-60Hz
DC input: -36 ~ -75V,  8~4A
Max power: 200 Watts
Operating Spec. Operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating humidity: 5% to 95% (RH), non-condensing
Non-Operating Spec.  Storage temperature: –40°C to 70°C (–40°F to 158°F)
Storage humidity: 5% to 95% (RH), non-condensing
