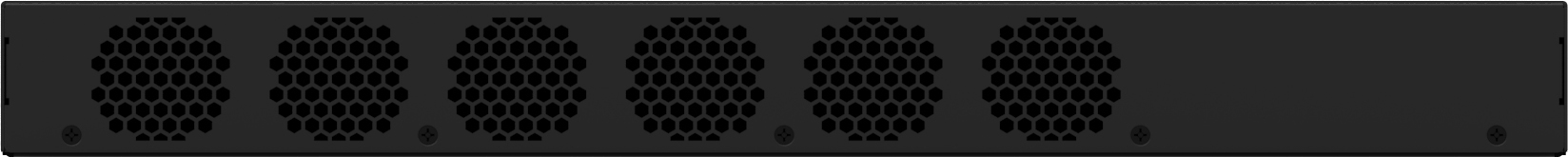

S9502-16SMT

16-Port, 100M/1GE/10GE Disaggregated Cell Site Gateway

  • Fanless Disaggregated Cell Site Gateway
  • Supports SyncE, and IEEE 1588
  • 4 x 100M/1GE RJ45 ports
  • 8 x 1GE SFP ports
  • 4 x 1GE/10GE SFP+ ports
  • 1 x RJ45 serial console port
  • 1 x 1000 Base-T RJ45 management port
  • 1 x USB 2.0 Type-A general purpose port
  • 1PPS, 10MHz, and ToD timing ports
OVERVIEW

The UfiSpace S9502-16SMT is a high-performance, versatile open networking white box router that is designed to address the changing needs of backhaul transport requirements as telecoms make the transition from legacy technologies towards 5G. It is designed as fanless router to be implemented in locations with stricter requirements to noise control and power management.

The S9502-16SMT improves reliability and quality of the DCSG with a design that reduces the amount of movable parts, leading to less servicing needed due to wear and tear. With the Qumran-UX silicon from Broadcom and dual core processor to ensure performance, the S9502-16SMT is an ideal option for those hard to reach cell sites to minimize service runs. It also provides 100M/1G RJ45, 1G SFP and 10G SFP+ service interfaces to support both legacy and next gen cell sites with 1PPS, 10MHz and ToD timing interfaces to provide flexibility when enabling IEEE 1588v2 and SyncE timing features.

For additional information or samples of our S9502-16SMT, please contact our sales team.

FEATURES
  • Utilizes UfiSpace timing module for Class C Accuracy
  • Supports SyncE and IEEE 1588v2 (T-BC/OC, T-TC, T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Rich timing input/output interfaces: ToD, 1PPS, and 10MHz
  • Supports 100M/1G for legacy, 10G for next gen. services
  • 1GB deep buffering
  • Reduced noise and power consumption
  • Fanless design to reduce maintenance
  • 1+1 power supplies with redundancy support
  • 1 RU compact design, suitable for industry standard 19" racks

For additional information or samples of our S9502-16SMT, please contact our sales team.

SPECIFICATIONS

For additional information or samples of our S9502-16SMT, please contact our sales team.

Physical
Processor Intel Denverton-NS Dual Core @ 1.6GHz
Memory 1x8GB DDR4 ECC
Storage 1x32GB M.2 SSD
ASIC

Broadcom Qumran-UX BCM88273

Chassis 1RU, 440W x 43.5H x 250D mm  (17.32"x1.71"x9.84")
4.32kg (9.52lbs)
Redundancy 1+1 Fixed power units
Environmental
Power Spec. AC input: 100 to 240V
DC input: -36V to -75V
Typical power: 34 Watts (no transceiver)
Operating Spec. Operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating humidity: 5% to 95% (RH), non-condensing
Non-Operating Spec.  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 95% (RH), non-condensing
