S6301-56STP

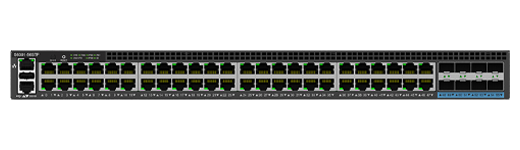

48 x 1G RJ45 PoE & 8 x 10G SFP+ Ports
OverviewFeaturesSpecificationsDownloads
We use cookies to provide the best user experience for the visitors. By continuing to browse the website, you agree to our use of cookies.

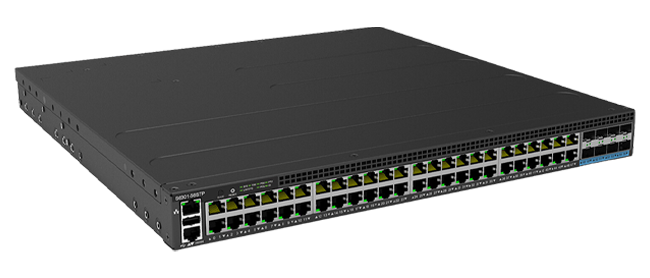

The UfiSpace S6301-56STP is a high-performance L2/L3 PoE switch designed to meet the growing demands of enterprise and campus access connectivity, with full Power over Ethernet (PoE) support.
Featuring 48 x 1G RJ-45 ports and 8 x 10G SFP+ ports, the S6301-56STP utilizes Broadcom's Trident3-X2 silicon, delivering a switching capacity of 130 Gbps. It fully supports IEEE 802.3af/802.3at on all 48 RJ-45 ports, providing up to 30W of power on each port, ensuring seamless integration of powered devices and robust management capabilities.
Powered by an Intel Denverton 4-core processor, the S6301-56STP simplifies and enhances enterprise and campus networks with flexibility and performance. It also includes redundant, hot-swappable components, offering increased reliability, availability, and reduced maintenance costs.
For additional information or samples of our S6301-56STP, please contact our sales team.
For additional information or samples of our S6301-56STP, please contact our sales team.
| Processor | Intel Denverton 4 Core @ 1.6GHz |
| Memory | 16GB DDR4 |
| Storage | 32GB SSD |
| ASIC | Broadcom Trident3-X2 BCM56277 |
| Chassis | 1RU, 440W x 440D x 43.8H mm (17.32" x 17.32" x 1.72") Weight without FRU: 5.74 kg (12.65 lbs) |

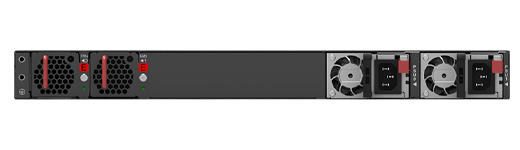

| Redundancy | 1+1 hot swappable power units 1+1 hot swappable fan units |
| Power Specs. | AC input: 100 to 240V, 12A Typical power: 80 Watts (no transceiver) |
| Operating Specs. | Operating temperature: 0°C to 45°C (32°F to 113°F) Operating humidity: 5% to 95% (RH), non-condensing |
| Non-Operating Specs. | Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 95% (RH), non-condensing |
