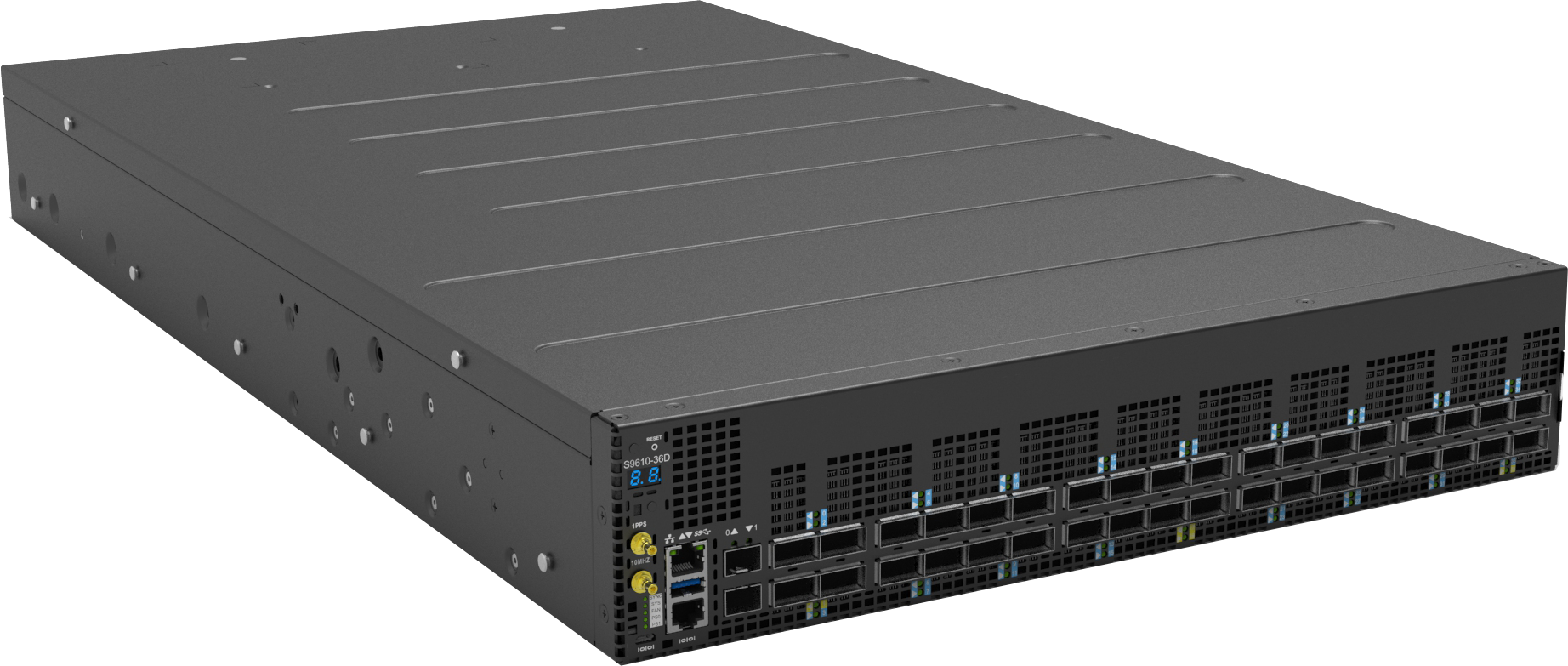

S9610-36D

Open Aggregation Router

S9610-36D

36-Port, 400G Open Aggregation Router

  • Multi-function Aggregation Router
  • Supports SyncE and IEEE 1588

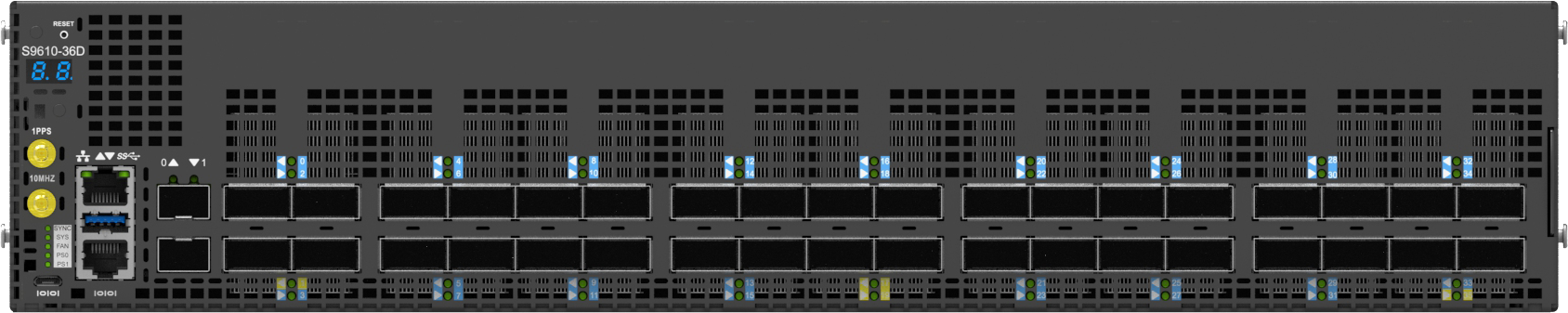

  • 36 x 400G QSFP-DD ports supporting OpenZR+
  • 2 x 10G SFP+ management ports
  • 1 x RJ45 serial console port
  • 1 x Micro USB console port
  • 1 x 100/1000M RJ45 management port
  • 1 x USB 3.0 Type-A port
  • 1PPS and 10MHz timing ports
OVERVIEW

The UfiSpace S9610-36D is a 36 x 400G disaggregated open router that evolves the network to a 400G network, which enables next generation of 5G services and applications.

The S9610-36D can be deployed at the provider edge network to enable transport services over a scalable next generation telecom network. It is also suitable for central office data centers and network aggregation. With 400G supporting OpenZR+, it provides better usage of bandwidth for metro and regional aggregation. Our S9610-36D is capable of mobile network aggregation with support for SyncE and IEEE 1588v2 with Class C timing accuracy.

The S9610-36D open aggregation router uses the Broadcom J2C+ silicon, which provides 16GB deep buffering and 14.4Tbps switching capacity. It includes a knowledge-based processor (or TCAM) to perform high-performance parallel searches to reach decision speeds of multiple billion decisions per second, which makes it ideal for provider edge applications. As a aggregation router, the S9610-36D enables fault and performance monitoring, non-stop routing support for control and data plane, and comprehensive high-availability networks.

For additional information or samples of our S9610-36D, please contact our sales team.

FEATURES
  • Utilizes UfiSpace timing module for Class C timing accuracy
  • Supports SyncE and IEEE 1588v2 (T-BC/OC, T-TC, T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Timing input/output interfaces: 1PPS and 10MHz
  • 16GB deep buffering
  • BMC for remote monitoring and management

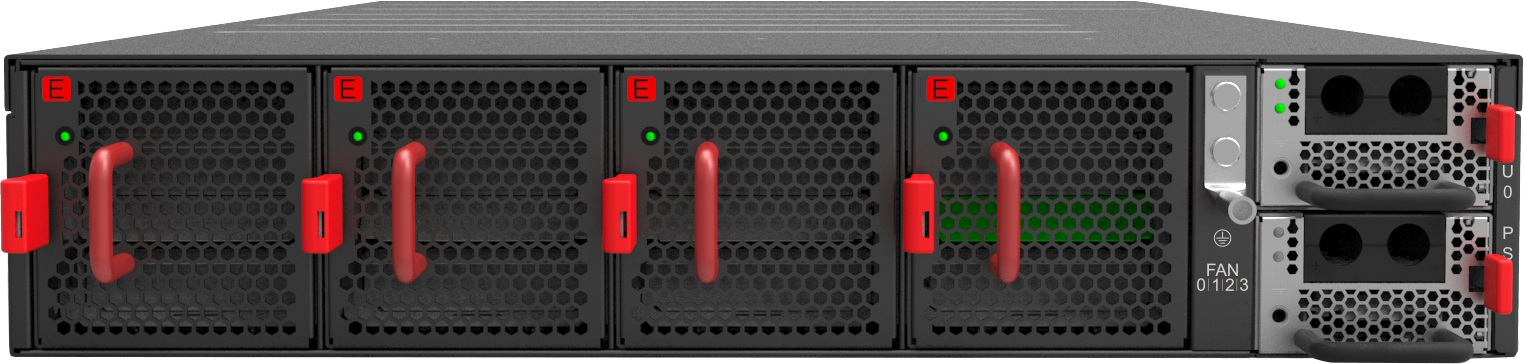

  • 2 hot swappable power supplies with 1+1 redundancy support
  • 4 hot swappable fan modules with 3+1 redundancy support
  • 2 RU compact design, suitable for industry standard 19" racks

For additional information or samples of our S9610-36D, please contact our sales team.

SPECIFICATIONS

For additional information or samples of our S9610-36D, please contact our sales team.

Physical
Processor Intel Skylake-D 8-Core @ 1.9GHz
Memory 128GB DDR4
Storage 256GB SSD
ASIC

Broadcom Jericho2c+ BCM88850
Broadcom OP2 BCM16K (Premium)

Chassis 2RU, 436W x 762D x 87.7H mm  (17.17" x 30" x 3.45")
Weight: 24.12 kg (53.18 lbs)
Redundancy 1+1 Hot swappable power units
3+1 Hot swappable fan units
Environmental
Power Specs. AC input: 200 to 240V, 16A
DC input: -40 to -72V, 80A
Typical power: 933 Watts (no transceiver)
Operating Specs. Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating humidity: 5% to 85% (RH), non-condensing
Non-Operating Specs.  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 93% (RH), non-condensing
