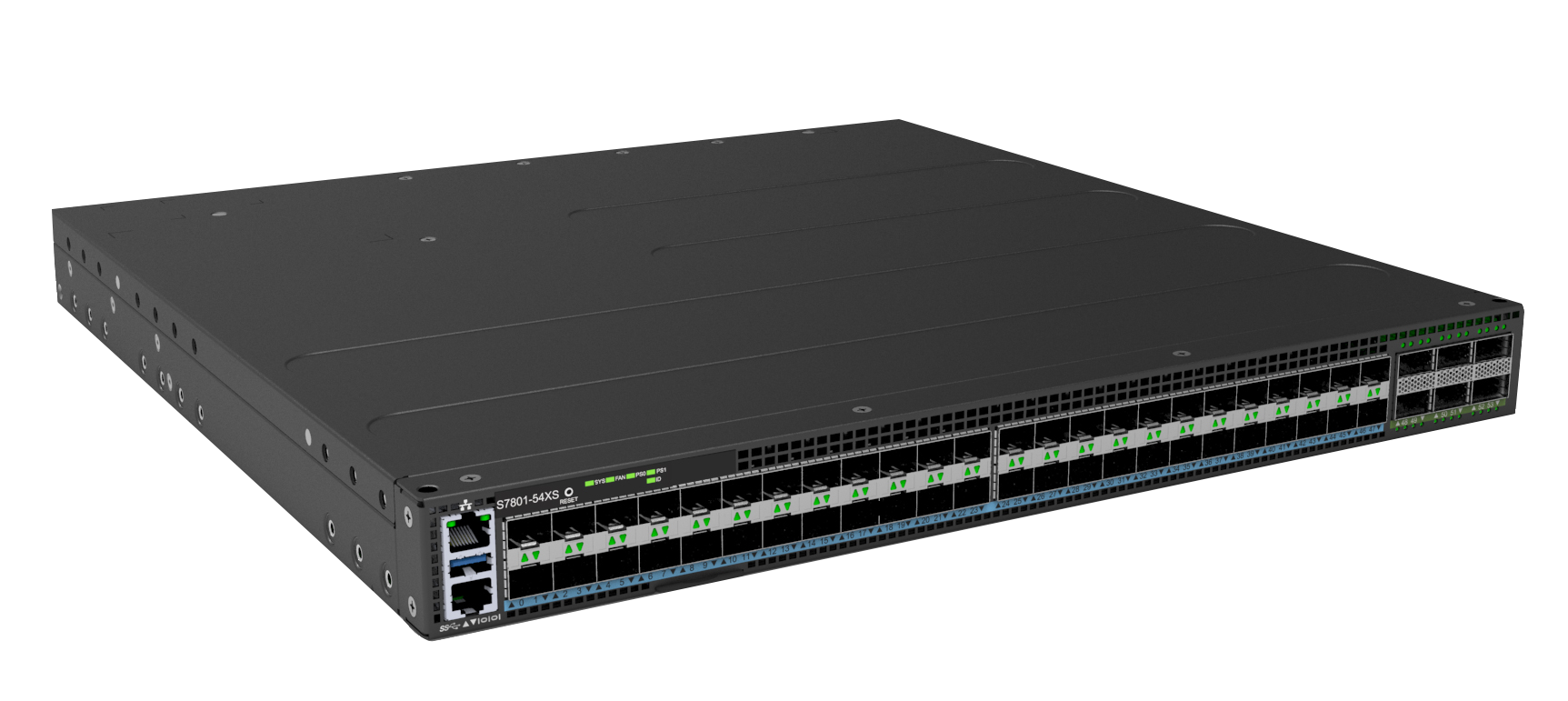

10/100G Data Center Switch


48 x 10G SFP+ & 6 x 100G QSFP28 Ports

  • 1 RU, Data Center Leaf/ToR Switch
  • 1.28Tbps switching capacity
  • 6 x 40/100G QSFP28 ports
  • 48 x 100M/1G/10G SFP+ ports
  • 1 x 100/1000M RJ-45 management port
  • 1 x RJ45 serial console port
  • 1 x USB 3.0 Type-A port

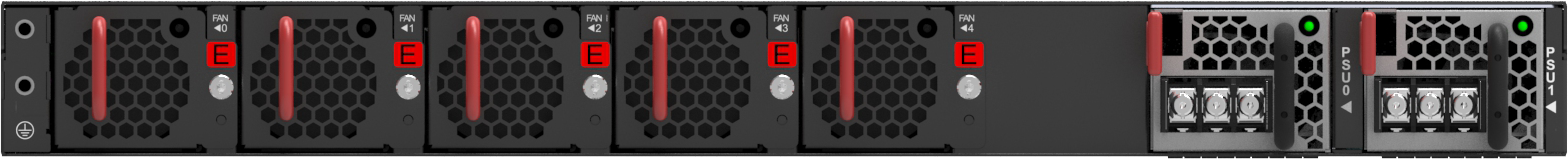

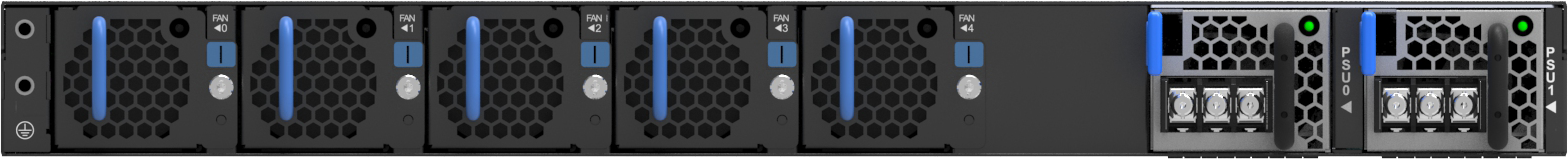

  • Front-to-back or Back-to-front airflow available
  • Supports ONIE

The UfiSpace S7801-54XS is a high-performance, data center networking white box switch that is designed to address the fast growing segment of the data center switching market and the needs to push service capacity to the next level.

With 6 x 100G QSFP28 ports and 48 x 10G SFP+ ports, the S7801-54XS data center switch utilizes the Broadcom Trident3-X5 silicon to provide intelligent features and structured management for centralized servers to enable high-efficiency Ethernet connectivity for data center services.

These switches deliver performance and intelligence to the network edge in a flexible 1RU form factor that helps reduce infrastructure and administrative costs.

The S7801-54XS brings data centers into the future networking with a powerful Intel Denverton 4-core processor and high-speed 10G and 100G interfaces. It comes with redundant, hot swappable components for convenience, increased availability, reliability and lower costs of maintenance.

For additional information or samples of our S7801-54XS, please contact our sales team.

  • High density 10G service interfaces
  • 1.28Tbps switching bandwidth capacity
  • Broadcom Trident3-X5 Silicon
  • Front-to-back and Back-to-front airflow options
  • Flexible and efficient data processing
  • On-chip packet buffers minimize the data latency
  • Enable real-time network status visibility
  • BMC for monitoring and managing equipment health status
  • 1 + 1 hot swappable power supply field replaceable units
  • 4 + 1 hot swappable fan field replaceable units

For additional information or samples of our S7801-54XS, please contact our sales team.


For additional information or samples of our S7801-54XS, please contact our sales team.

Processor Intel Denverton 4 Core @ 1.6GHz
Memory 8GB DDR4
Storage 32GB SSD
ASIC     Broadcom Trident3-X5 BCM56771
Chassis 1RU, 440W x 440D x 43.8H mm (17.32" x 17.32" x 1.72")
Weight: 8.9 kg (19.62 lbs)
Redundancy 1+1 hot swappable power units
4+1 hot swappable fan units
Power Specs.

AC input: 100 to 240V, 6A
DC input: -36 to -75V, 16A

Typical power: 109 Watts (no transceiver)

Operating Specs. Operating temperature:  0°C to 45°C (32°F to 113°F)
Operating humidity: 5% to 95% (RH), non-condensing
Non-Operating Specs.  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 95% (RH), non-condensing
