OVERVIEW

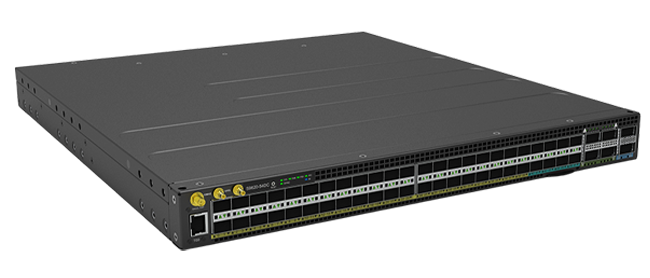

The UfiSpace S9620-54DC is a versatile 54-port open aggregation router powered by the Broadcom Qumran3u silicon, designed to bridge the gap between high-speed core connectivity and diverse edge access.

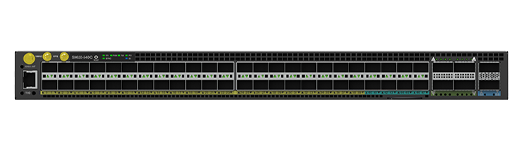

The hardware interface includes 2 x 400G QSFP-DD ports, 4 x 100G QSFP-DD ports, 8 x 50G SFP56 ports, and 40 x 25G SFP28 ports, offering a flexible multi-rate transition from 1G to 400G. The platform is optimized for 400ZR and OpenZR+ coherent optics, allowing for direct metro aggregation over long distances without the need for additional optical transponders.

The S9620-54DC provides hardware-based MACsec on all ports to ensure line-rate data encryption across the entire aggregation layer. Due to its compact 480mm depth, the S9620-54DC is particularly suited for space-constrained edge environments or telecommunications cabinets where traditional deep-chassis routers cannot be deployed. The deep buffering and rich feature set enable this router to manage the unpredictable traffic bursts associated with 5G xHaul and high-performance AI inference at the network edge.

FEATURES

• Utilizes UfiSpace timing module for Class C timng accuracy
• Supports full SyncE and IEEE 1558v2 (T-GM, T-BC/OC, T-TC)
• Support full Segment Routing over IPv6 (SRv6)
• Integrated Stratum 3E OCXO with optional hold over performances
• Rich timing input/output interfaces: ToD, 1PPS, 10MHz, and BITS
• Internal GNSS receiver for master clock implementations
• Supports Time Sensitive Networking (TSN) for low packet loss and low delay variation
• 2 hot swappable power supplies with 1+1 redundancy support
• 5 hot swappable fan modules with 4+1 redundancy support
• 1 RU compact design, fit into industry standard ETSI 600mm racks.
• For additional information or samples of our S9620-54DC, please contact our sales team.
