S9500-30XS

Disaggregated Cell Site Gateway Router

S9500-30XS

30-Port, 10/25/100G Disaggregated Cell Site Gateway Router

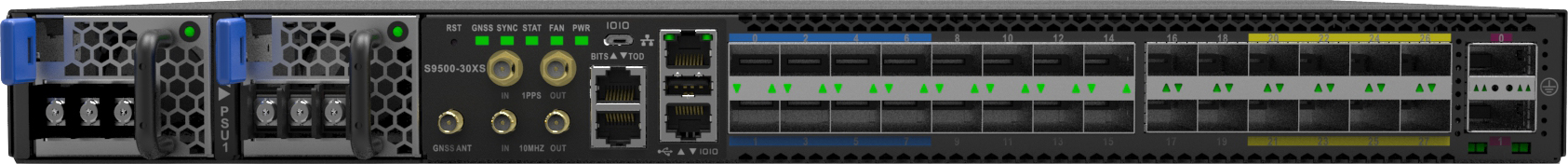

  • Full featured, compact Cell Site Gateway Router
  • Supports SyncE and IEEE 1588v2
  • 2 x 40/100G QSFP28 ports
  • 8 x 10/25G SFP28 ports
  • 20 x 1/10G SFP+ ports
  • 1 x RJ45 serial console port
  • 1 x Micro USB console port
  • 1 x 100/1000M RJ45 management port
  • 1 x USB 2.0 Type-A general purpose port
  • GNSS, 1PPS, 10M, ToD, and BITS timing ports
  • Partners and Compliances:
OVERVIEW

The UfiSpace S9500-30XS is a disaggregated cell site gateway (DCSG) and is said to be the industry's first white box cell site gateway router to be deployed by global tier one telecoms. Enabling the deployment of open and disaggregated transport network services, the S9500-30XS is a high performance, versatile disaggregated cell site gateway router that is designed to address the changing needs of backhaul transport requirements as telecoms make the transition from legacy technologies towards 5G New Radio (5G NR).

The S9500-30XS is a future proof cell site gateway router with dense high-speed interfaces (100M/1G for legacy, 10G/25G for 5G, and 40G/100G for backhaul), full timing features (SyncE and IEEE 1588v2), and QoS capabilities. It is equipped with a power processor, 3GB deep buffer and the neccessary timing ports to accommodate the evolving cell site requirements as telecoms transition towards 5G.

Furthermore, UfiSpace's cell site gateway routers are designed for outside plant installation, meeting TP76200 GR-3108 Class2 OSP (NEBS Level 3). Furthermore, the S9500-30XS has hot-swappable power supplies and fan modules to provide convenience and lower the costs of maintenance.

As a disaggregated cell site gateway router, the S9500-30XS enables Telecoms to deploy disaggregated open network infrastructure to lower costs and rapidly scale existing services to include 5G. It is an OCP Accepted and TIP compliant open network white box solution that can support open standard NOS applications for flexibility in management, orchestration and feature expansions.

For additional information or samples of our S9500-30XS, please contact our sales team.

FEATURES
  • Supports SyncE and IEEE 1588v2 T-GM, T-BC, T-TC, T-TSC
  • Rich timing input/output interfaces: ToD, BITS, 1PPS and 10MHz
  • Internal GNSS receiver for master clock implementations
  • Supports 100M/1G for legacy BBU, 10G/25G for 5G BBU
  • Supports backhaul data rates up to 100 Gbps
  • 3GB deep buffering and Intel 1.5 GHz quad core CPU for network operation
  • Class C timing accuracy
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Individual BMC for monitoring and managing health status
  • 2 hot swappable power supplies with 1+1 redundancy support

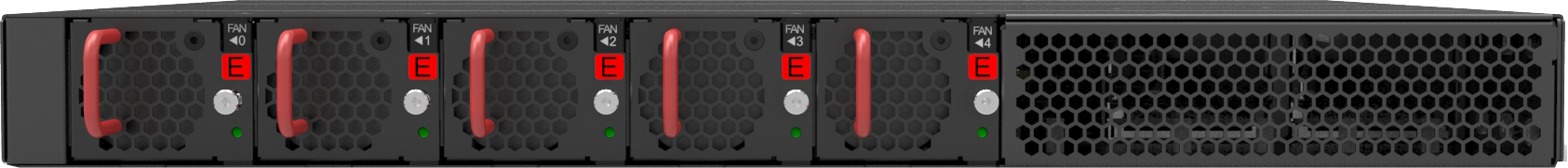

  • 5 hot swappable fan modules with 4+1 redundancy support
  • 1 RU compact design with 300mm depth suitable for standard 19" racks

For additional information or samples of our S9500-30XS, please contact our sales team.

SPECIFICATIONS

For additional information or samples of our S9500-30XS, please contact our sales team.

Physical
Processor Intel® Broadwell-DE 4-Core @ 1.5GHz
Memory 8GB DDR4 (Standard)
16GB DDR4 (Premium)
Storage 32GB SSD (Standard)
128GB SSD (Premium)
ASIC Broadcom Qumran-AX BCM88470
BMC AST2400
Chassis 1RU, 440W x 302D x 43.5H mm (17.32" x 11.89" x 1.713")
Weight: 4.76 kg (10.49 lbs)
Redundancy 1+1 Hot swappable power units
4+1 Hot swappable fan units
Environmental
Power Specs. AC input: 100 to 240V, 6A
DC input: -36 to -75V, 16A
Typical power: 84 Watts (no transceiver)
Operating Specs. Operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating humidity: 5% to 85% (RH), non-condensing
Non-Operating Specs.  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 93% (RH), non-condensing
