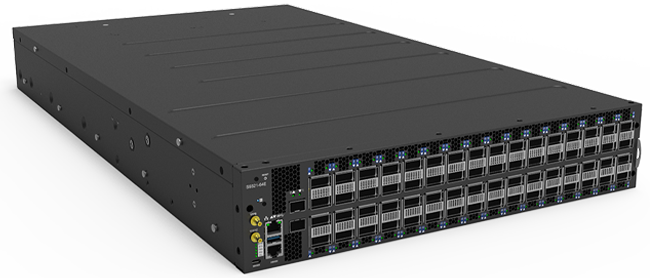

S9321-64E
800G Datacenter Switch for AI/ML
OverviewFeaturesSpecificationsApplicationsDownloads
We use cookies to provide the best user experience for the visitors. By continuing to browse the website, you agree to our use of cookies.
Next generation cloud service applications not only consume more data, it requires service providers to build more flexible, agile and scalable networks to meet the increasing demands of their customers.
The evolution to 800G will provide data centers with the capability to meet capacity and utilization demands of AI application. The S9321-64E 800G data center switch will provide data centers with a rich set of features such as advance adaptive routing, powerful load balancing and end-to-end congestion control to address the high performance networking demands of AI/ML network to minimize the job completion time (JCT).
For additional information or samples of our S9321-64E, please contact our sales team.
For additional information or samples of our S9321-64E, please contact our sales team.
| Processor | Intel® Icelake-D 4-Core @ 1.9GHz |
| Memory | 32GB DDR4 |
| Storage | 128GB SSD |
| ASIC | Broadcom Tomahawk5 BCM78900 |
| BMC |
AST2620 |
| Chassis |
2RU, 436W x 762D x 87.7H mm (17.17" x 30" x 3.45") Weight without FRU: 23.72kg (52.28 lbs) |
| Redundancy | 1+1 Hot swappable power units 3+1 Hot swappable fan units |
| Power Specs. | AC input: 200 to 240V, 16A DC input: -40 to -72V, 80A Typical power: 793 Watts (no transceiver) |
| Operating Specs. | Operating temperature: 0°C to 40°C (32°F to 104°F) Operating humidity: 5% to 95% (RH), non-condensing |
| Non-Operating Specs. | Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 95% (RH), non-condensing |
