M3000-14XC
14-Port, 25/100G Fronthaul Multiplexer
OverviewFeaturesSpecificationsDownloads
We use cookies to provide the best user experience for the visitors. By continuing to browse the website, you agree to our use of cookies.

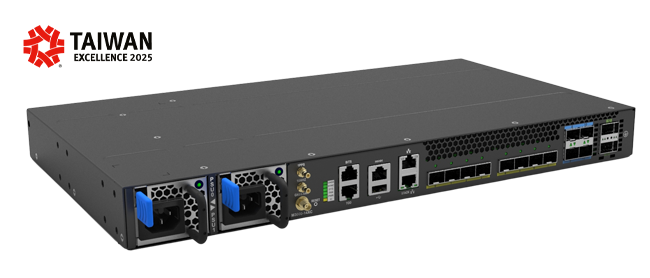

The UfiSpace M3000-14XC is a high-performance, versatile open networking fronthaul device designed to expand coverage and maximize DU resources with flexibility as service providers improve their services. It enables telecoms and service providers to optimize private 5G networks by efficiently utilizing DU resources, and streamlining the upgrading process when increasing service capacity.
The M3000-14XC is future-proofed with a powerful quad-core processor, a programmable FPGA, 14 high-speed interfaces, and full timing features supporting IEEE 1588V2 and SyncE. It is suitable for both indoor and outdoor cabinet deployments, with redundant and hot-swappable components for convenience, increased availability, reliability, and lower maintenance costs.
| Processor | ARM Cortex-A53 4-Core 64-bit @ 1.0GHz |
| FPGA | Intel S10-TX |
| Memory | 4GB DDR4 |
| Timing Interfaces | 1 x GNSS input SMA (Premium version) 1 x 1PPS input/output SMB 1 x 10MHz input/output SMB 1 x BITS input/output RJ48 1 x ToD input/output RJ45 |
| Chassis | 1RU, 440W x 250D x 43.5H mm (17.32" x 9.84" x 1.713") Weight: 4.18 kg (9.21 lbs) |
| Redundancy | 1+1 Hot swappable power units |
| Power Specs. |
AC input: 100 to 240V, 3A Typical power:103W Watts (no transceivers) |
| Operating Specs. | Operating temperature: -40°C to 70°C (-40°F to 158°F) Operating humidity: 5% to 95% (RH), non-condensing |
| Non-Operating Specs. | Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 93% (RH), non-condensing |
