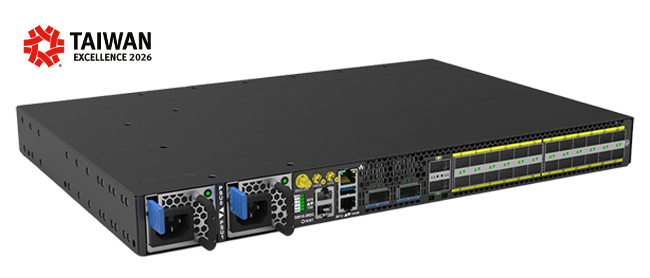

S9510-28DC

28-Port, 25/100/400GE Disaggregated Cell Site Gateway

  • Multi-function Disaggregated Cell Site Gateway
  • Supports FlexE, OpenZR+, TSN, SyncE, and IEEE 1588

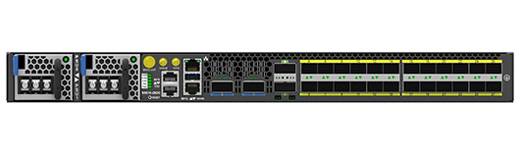

  • 24 x 1GE/10GE/25GE SFP28 ports
  • 2 x 40GE/100GE QSFP28 ports
  • 2 x 100GE/400GE QSFP-DD ports
  • 1 x RJ45 serial console port
  • 1 x 10/100/1000M RJ45 management port
  • 1 x USB 3.0 Type-A general purpose port
  • GNSS, 1PPS, 10MHz, BITS, and ToD timing ports
OVERVIEW

The UfiSpace S9510-28DC is a high-performance, versatile open networking white box router that is designed to address the changing needs of backhaul transport requirements as telecoms make the transition from legacy technologies towards 5G. It enables telecoms and service providers to deploy disaggregated open network infrastructure to lower costs and rapidly scale existing services for edge computing, mobile backhaul, and broadband access applications.

The S9510-28DC is future-proofed with a powerful 8 core processor and 28 high-speed interfaces, including 400GE ports with Flexible Ethernet (FlexE) and OpenZR+ features. It also supports full timing features of IEEE 1588v2 and SyncE. Compliant with 802.1CM Time Sensitive Networking (TSN) for fronthaul makes the S9510-28DC the best option for xHual application. Suitable for both indoor and outdoor deployments the S9510-28DC has redundant, hot-swappable components for convenience, increased availability, reliability and lower costs of maintenance.

For additional information or samples of our S9510-28DC, please contact our sales team.

FEATURES
  • Utilizes UfiSpace timing module for Class C Accuracy
  • Supports Time Sensitive Networking (TSN) for low packet loss and low delay variation
  • Supports Flexible Ethernet (FlexE) for flexible bandwidth utilization
  • Supports SyncE and IEEE 1588v2 (T-GM, T-BC/OC, T-TC, T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Rich timing input/output interfaces: ToD, 1PPS, BITS and 10MHz
  • Integrated GNSS receiver with passive or active antenna support
  • 2GB deep buffering
  • BMC for remote monitoring and management
  • 2 hot swappable power supplies with 1+1 redundancy support

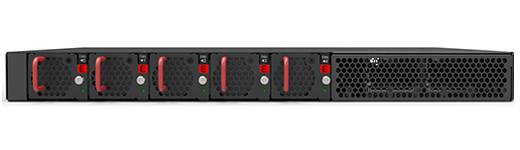

  • 5 hot swappable fan modules with 4+1 redundancy support
  • 1 RU compact design, suitable for industry standard 19" racks

For additional information or samples of our S9510-28DC, please contact our sales team.

SPECIFICATIONS

For additional information or samples of our S9510-28DC, please contact our sales team.

Physical
Processor Intel Denverton-NS 4 Core @ 1.6GHz (Standard)
Intel Denverton-NS 8 Core @ 1.7GHz (Premium)
Memory 1x8GB DDR4 SO-DIMM with ECC (Standard)
2x8GB DDR4 SO-DIMM with ECC (Premium)
Storage 1x32GB M.2 SSD   (Standard)
1x128GB M.2 SSD (Premium)
ASIC

Broadcom Qumran2a BCM88483
Chassis 1RU, 440W x 43.5H x 302D mm  (17.32"x1.71"x11.89")
Redundancy 1+1 hot swappable power units
4+1 hot swappable fan units
Environmental
Power Spec. AC input: 100 to 240V
DC input: -40V to -72V
Typical power: 105 Watts (no transceiver)
Operating Spec. Operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating humidity: 5% to 93% (RH), non-condensing
Non-Operating Spec.  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 85% (RH), non-condensing
Applications

Mobile Backhaul

Broadband Network Gateway

Private 5G
