Explore Our End to End Open Transport Network Solutions

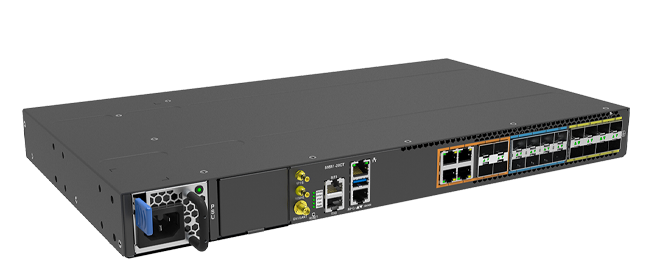

S9500 Series for Access
Temperature hardened, compact and easy maintenance open access routers desinged to be deployed into tough environments such as cell sites. With capabilties supporting mobile, fixed and optical traffic when paired with OpenZR+ transceivers, implementing open and disaggregated architectures into the access has never been easier. Explore one of the world's largest selection of disaggregated cell site gateways and learn more about how our S9500 Series can disaggregate your network.
About Series
Related product

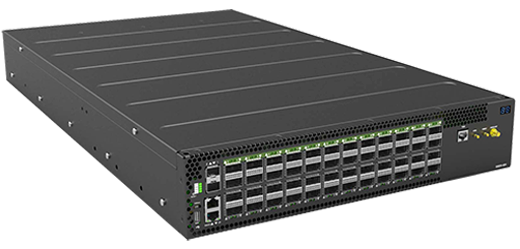

S9600 Series for Aggregation
High-performance, multi-service open aggregation routers with terabit switching capacity. Providing high density 25/100/400G interfaces and TCAM options available with SyncE, IEEE 1588v2 and TSN support. Converge the access network into a streamlined backhaul transport to minimize costs and simplify management. Explore our products below and learn more about how our S9600 Series can simplify your aggregation network.
About Series
Related product

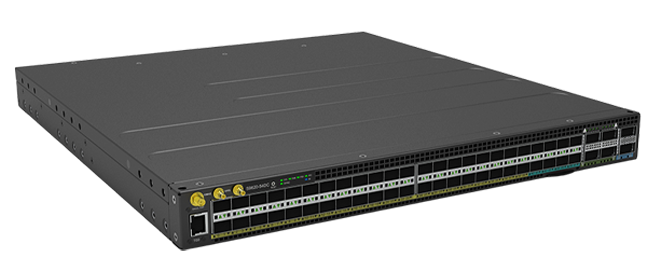

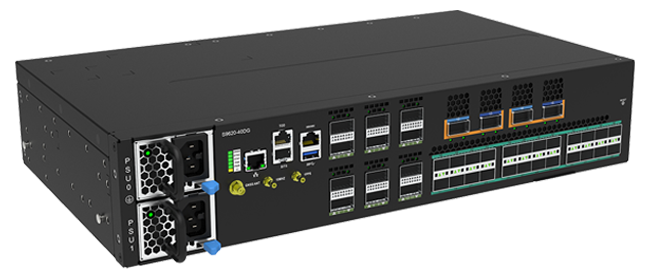

S9700 Series for Core / Edge
Highly scalable open core/edge routers capable of being deployed as a standalone router or as a distributed disaggregated chassis cluster. Provides high performance CPU and TCAM for processing power as a provider edge. Build multiple levels of redundancy within core and edge networks with a DDC cluster that can easily scale up when and if it's needed. Explore our products below and learn more about how our S9700 Series can improve your backbone.
About Series
Related product

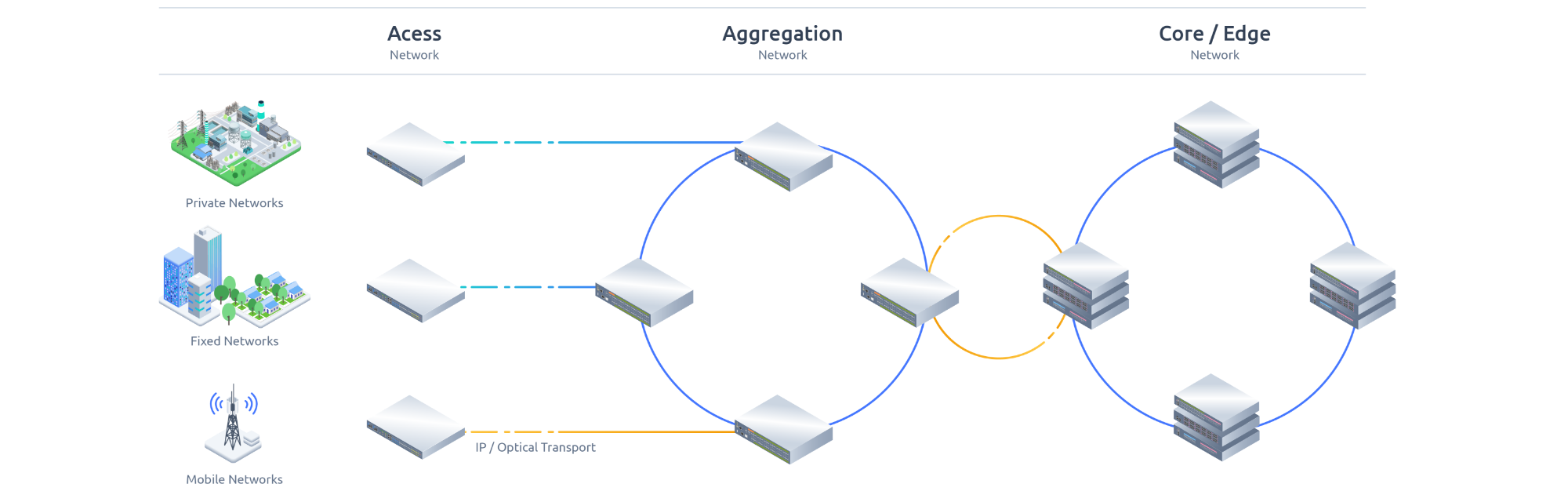

Access Network
Aggregation Network
Core / Edge Network
S9500-30XS
Full featured, compact Cell Site Gateway Router Supports SyncE and IEEE 1588v2 2 x 40/100G QSFP28 ports 8 x 10/25G SFP28 ports 20 x 1/10G SFP+ ports 1 x RJ45 serial console port 1 x Micro USB console port 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port GNSS, 1PPS, 10M, ToD, and BITS timing ports Partners and Compliances:
TIP Gold Badge
MACsec
OCP Accepted
Qumran-AX
NEBS Level 3
Industry First
S9500-22XST
Full featured, compact and supports RJ45 Supports SyncE and IEEE 1588v2 2 x 40/100G QSFP28 ports 8 x 10/25G SFP28 ports 8 x 1/10G SFP+ ports 4 x 100M/1G RJ45 ports 1 x RJ45 serial console port 1 x Micro USB console port 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port GNSS, 1PPS, 10M, ToD, and BITS timing ports Partners and Compliances:
TIP Gold Badge
OCP Accepted
Temperature Hardened
Qumran-AX
Hot swappable PSU & Fan
Class C timing accuracy
S9501-28SMT
Full featured, Economic Cell Site Gateway Supports SyncE and IEEE 1588 8 x 1/10G SFP+ ports 16 x 100M/1G SFP ports 4 x 100M/1G RJ45 ports 1 x RJ45 serial console port 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port GNSS, 1PPS, 10MHz, ToD, and BITS timing ports Partners and Compliances:
MACsec
OCP Accepted
Temperature Hardened
Qumran-UX
TIP Bronze Badge
Hot swappable PSU & Fan
S9501-18SMT
Lightweight, Economic Cell Site Gateway Supports SyncE and IEEE 1588 6 x 1/10G SFP+ ports 8 x 100M/1G SFP ports 4 x 100M/1G RJ45 ports 1 x RJ45 serial console port 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports Partners and Compliances:
OCP Accepted
Temperature Hardened
Qumran-UX
TIP Bronze Badge
Hot swappable PSU & Fan
Class C timing accuracy
S9502-16SMT
Fanless Disaggregated Cell Site Gateway Supports SyncE, and IEEE 1588 4 x 1/10G SFP+ ports 8 x 100M/1G SFP ports 4 x 100M/1G RJ45 ports 1 x RJ45 serial console port 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port 1PPS, 10MHz, and ToD timing ports Partners and Compliances:
Redundant PSU
Fanless
Fixed power
Temperature Hardened
Qumran-UX
Class C timing accuracy
S9502-12SM
Fanless Disaggregated Cell Site Gateway Supports SyncE, and IEEE 1588 4 x 1/10G SFP+ ports 8 x 100M/1G SFP ports 1 x RJ45 serial console port 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port 1PPS, 10MHz, and ToD timing ports Partners and Compliances:
Redundant PSU
Fanless
Fixed power
Temperature Hardened
Qumran-UX
Class C timing accuracy
S9510-28DC
Multi-function Disaggregated Cell Site Gateway Supports FlexE, OpenZR+, TSN, SyncE, and IEEE 1588 2 x 100/400G QSFP-DD ports 2 x 40/100G QSFP28 ports 24 x 10/25G SFP28 ports 1 x RJ45 serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, ToD, and BITS timing ports
Flex Ethernet (FlexE)
Time Sensitive Networking (TSN)
OpenZR+
Qumran2a
TIP Bronze Badge
400G
S9510-30XC
Multi-function Disaggregated Cell Site Gateway Supports FlexE, TSN, SyncE, and IEEE 1588 2 x 40/100G QSFP28 ports 28 x 10/25G SFP28 ports 1 x RJ45 serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, ToD and BITS timing ports Partners and Compliances:
Flex Ethernet (FlexE)
Qumran2c
Temperature Hardened
Time Sensitive Networking (TSN)
Hot swappable PSU & Fan
Class C timing accuracy
S9600-64X
High density, Multi-function Aggregation Router Supports SyncE and IEEE 1588 64 x 40/100G QSFP28 ports 4 x 1/10/25G SFP28 ports (break out from Port 0) 1 x RJ45 serial console port 1 x Micro USB serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports Partners and Compliances:
Qumran2c
Time Sensitive Networking (TSN)
Hot swappable PSU & Fan
Class C timing accuracy
S9600-32X
Multi-function Aggregation Router Supports SyncE and IEEE 1588 32 x 40/100G QSFP28 ports 4 x 1/10/25G SFP28 ports (break out from Port 0) 1 x RJ45 serial console port 1 x Micro USB serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports Partners and Compliances:
Redundant PSU
Redundant Fan
Qumran2c
Time Sensitive Networking (TSN)
TIP Bronze Badge
Class C timing accuracy
S9600-72XC
High density, Multi-function Aggregation Router with TCAM Option Supports SyncE and IEEE 1588 8 x 40/100G QSFP28 ports 64 x 1/10/25G SFP28 ports 2 x 10GBase SFP+ management ports 1 x RJ45 serial console port 1 x Micro USB serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports Partners and Compliances:
Redundant PSU
Redundant Fan
Qumran2c
Time Sensitive Networking (TSN)
TIP Bronze Badge
Class C timing accuracy
S9600-30DX
Multi-function Aggregation Router Supports SyncE and IEEE 1588 6 x 40/100/400G QSFP-DD ports supporting OpenZR+ 8 x 40/100G QSFP-DD ports supporting OpenZR+ 16 x 40/100GE QSFP28 ports 2 x 10GBase SFP+ management ports 1 x RJ45 serial console port 1 x Micro USB console port 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port GNSS, 1PPS, 10MHz, ToD, and BITS timing ports Partners and Compliances:
Jericho2
Time Sensitive Networking (TSN)
OpenZR+
TIP Bronze Badge
Class C timing accuracy
400G
S9600-56DX
400G Multi-function Aggregation Router Supports TSN, SyncE and IEEE 1588 8 x 40/100/400G QSFP-DD ports 48 x 40/100G QSFP28 ports 4 x 1/10/25G SFP28 (MUX configurable from Port-0) 1 x RJ45 serial console port 1 x Micro USB serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports Partners and Compliances:
Qumran2c
Time Sensitive Networking (TSN)
OpenZR+
Hot swappable PSU & Fan
Class C timing accuracy
400G
S9600-28DX
400G Multi-function Aggregation Router Supports TSN, SyncE and IEEE 1588 4 x 40/100/400G QSFP-DD ports 24 x 40/100G QSFP28 ports 4 x 1/10/25G SFP28 (MUX configurable from Port-0) 1 x RJ45 serial console port 1 x Micro USB console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports
Qumran2c
Time Sensitive Networking (TSN)
OpenZR+
Hot swappable PSU & Fan
Class C timing accuracy
400G
S9610-36D
Multi-function Aggregation Router Supports SyncE and IEEE 1588 36 x 400G QSFP-DD ports supporting OpenZR+ 2 x 10G SFP+ management ports 1 x RJ45 serial console port 1 x Micro USB console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A port 1PPS and 10MHz timing ports
Jericho2c+
Redundant PSU & Fan
OpenZR+
TIP Bronze Badge
Class C timing accuracy
400G
S9600-48X
48 x 100GE QSFP28 ports 2 x 10GEBase SFP+ management ports 1 x RJ45 serial console port 1 x GE OOB management port 1 x USB 2.0 Type-A general purpose port 1 x RS232 console port in RJ45 form factor 1 x Micro USB port GNSS, 1PPS, 10MHz, and ToD timing ports
Jericho2
Redundant PSU & Fan
Time Sensitive Networking (TSN)
Class C timing accuracy
S9700-53DX
Disaggregated Open Router (DOR) Distributed Disaggregated Chassis (DDC) “Line Card” white box 40 x 40/100G QSFP28 service ports 13 x 400G QSFP-DD fabric ports 1 x RJ45 serial console port 1 x Micro USB console port 2 x 10GBase-X SFP+ management ports 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port Partners and Compliances:
Standalone or DDC Cluster
Jericho2
OCP Accepted
Redundant PSU & Fan
TIP Bronze Badge
NEBS Level 3
S9700-23D
Disaggregated Open Router (DOR) Distributed Disaggregated Chassis (DDC) “Line Card” white box 10 x 400G QSFP-DD service ports 13 x 400G QSFP-DD fabric ports 1 x RJ45 serial console port 1 x Micro USB console port 2 x 10GBase-X SFP+ management ports 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port Partners and Compliances:
Standalone or DDC Cluster
Jericho2
OCP Accepted
OpenZR+
TIP Bronze Badge
NEBS Level 3
S9701-82DC
Disaggregated Open Router (DOR) Distributed Disaggregated Chassis (DDC) “Line Card” white box 12 x 40/100G QSFP28 service ports 64 x 1/10/25G SFP28 service ports 6 x 400G QSFP-DD fabric ports 1 x RJ45 serial console port 1 x Micro USB console port 2 x 10GBase-X SFP+ management ports 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port Partners and Compliances:
Standalone or DDC Cluster
Redundant PSU & Fan
Jericho2c
Class C timing accuracy
S9710-76D
Disaggregated Open Router (DOR) Distributed Disaggregated Chassis (DDC) “Line Card” white box 36 x 40/100/400G QSFP-DD service ports 40 x 400G QSFP-DD fabric ports 1 x RJ45 serial console port 1 x Micro USB console port 2 x 10GBase-X SFP+ management ports 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port Partners and Compliances:
Standalone or DDC Cluster
Jericho2c+
OpenZR+
TIP Bronze Badge
Class C timing accuracy
400G
S9705-48D
Disaggregated Open Router (DOR) Distributed Disaggregated Chassis (DDC) “Fabric Card” white box 48 x 400G QSFP-DD fabric ports 1 x RJ45serial console port 1 x Micro USB console port 2 x 10GBase-X SFP+ management ports 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port Partners and Compliance:
Standalone or DDC Cluster
Ramon
OCP Accepted
Redundant PSU & Fan
TIP Bronze Badge
NEBS Level 3
