S9500-22XST

Disaggregated Cell Site Gateway

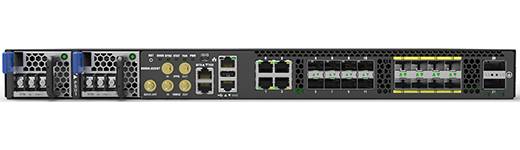

S9500-22XST

22-Port, 1/10/25/100G Disaggregated Cell Site Gateway

  • Full featured, compact and supports RJ45
  • Supports SyncE and IEEE 1588v2
  • 2 x 40/100G QSFP28 ports
  • 8 x 10/25G SFP28 ports
  • 8 x 1/10G SFP+ ports
  • 4 x 100M/1G RJ45 ports
  • 1 x RJ45 serial console port
  • 1 x Micro USB console port
  • 1 x 100/1000M RJ45 management port
  • 1 x USB 2.0 Type-A general purpose port
  • GNSS, 1PPS, 10M, ToD, and BITS timing ports
  • Partners and Compliances:
OVERVIEW

The UfiSpace S9500-22XST is a disaggregated cell site gateway router (DCSG) that can aggregate network data from legacy BBU equipment using RJ45 with next-gen. 5G BBUs. It enables the deployment of open and disaggregated transport network services, while addressing the changing needs of the backhaul transport as telecoms make the transition from legacy technologies towards 5G New Radio (5G NR).

The S9500-22XST is future proof with dense high-speed interfaces (100M/1G RJ45 for legacy, 10G/25G for 5G, and 40G/100G for backhaul) and full timing interfaces (ToD, BITS, 1PPS and 10MHz). It is equipped with a powerful processor, 2GB deep buffer and the hardware timing support needed (full SyncE and IEEE 1588v2) to accommodate the evolving cell site requirements as telecoms transition towards 5G.

UfiSpace's disaggregated cell site gateway routers are designed for outside plant installation, with temperature hardened case and comact size to fit into smaller cabinets. Furthermore, the S9500-22XST has hot-swappable power supplies and fan modules to provide convenience and lower maintenance costs.

Perfect for installation at any cell site location, the S9500-22XST enables Telecoms to deploy disaggregated open network infrastructure to lower costs and rapidly scale existing services to include 5G. It is a TIP compliant open network white box solution that can support open standard NOS applications for flexibility in management, orchestration and feature expansions.

For additional information or samples of our S9500-22XST, please contact our sales team.

FEATURES
  • Hardware supports full SyncE and IEEE 1558v2 (T-GM, T-BC, T-TC and T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Class C timing accuracy
  • Internal GNSS receiver for master clock implementations
  • Rich timing interfaces: ToD, 1PPS, BITS and 10MHz
  • 2GB deep buffering
  • Individual BMC for monitoring and managing health status
  • 1 RU small form factor with 300mm depth
  • Hot swappable power supplies with 1+1 redundancy support

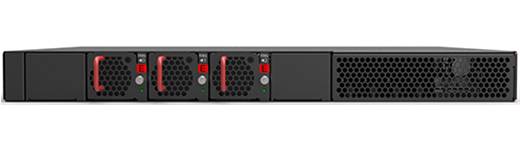

  • Hot swappable fan modules with 2+1 redundancy support

For additional information or samples of our S9500-22XST, please contact our sales team.

SPECIFICATIONS

For additional information or samples of our S9500-22XST, please contact our sales team.

Physical
Processor Intel Broadwell-DE 4-Core @ 1.5GHz
Memory 8GB DDR4
Storage 32GB SSD
ASIC Broadcom Qumran-AX BCM88470
BMC AST2400
Chassis 1RU, 440W x 302D x 43.5H mm (17.32" x 11.89" x 1.713")
Weight: 4.75 kg (10.47 lbs)
Redundancy 1+1 Hot swappable power units
2+1 Hot swappable fan units
Environmental
Power Specs. AC input: 100 to 240V, 3A
DC input: -36 to -75V,  8A
Typical power: 96 Watts (no transceiver)
Operating Specs. Operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating humidity: 5% to 85% (RH), non-condensing
Non-Operating Specs.  Storage temperature: –40°C to 70°C (–40°F to 158°F)
Storage humidity: 5% to 93% (RH), non-condensing
Applications

Mobile Backhaul

Broadband Network Gateway

Private 5G
