S9600 Series

Open Aggregation Routers

Converging Multiple Layers of the Network

UfiSpace's S9600 series of Open Aggregation Routers enable service providers to deploy an open network using a multi-function white box platform. It helps rapidly scale existing services for a multitude of applications while lowering capital and operational costs. With the S9600 Series, service providers will be able to address the changing needs of the aggregation network as we transition from legacy technologies towards a next generation network.

Contact Sales

Product Benefits

Next Gen. Capacity

High service capacity up to 14.4Tbps and improve quality with large routing tables supporting 100K+ queues for faster statistical analysis and accounting support.

Fixed-Mobile Convergence

Enable open fronthaul and mobile backhaul aggregation deployments with our open aggregation routers. The S9600 series supports timing protocols for legacy and next gen. such as IEEE 1588v2 (PTP), SyncE and Time Sensitive Networking (TSN).

Optimized Performance

Reconfigurable with a flexible packet processing engine to enable forwarding optimization, support new features and prevent packet loss using its high performance HBM (High Bandwidth Memory).

IP/Optical Convergence

Supports OpenZR+ transceiver to build simpler and converged IP/Optical networks.

Related Applications

Related Products

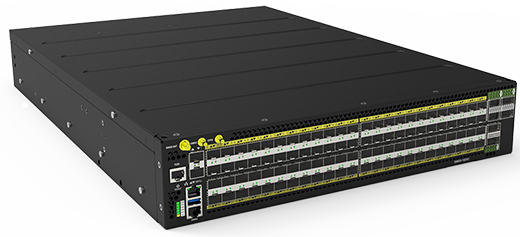

S9600-102XC

High density, Multi-function Aggregation Router with TCAM Option Supports SyncE and IEEE 1588 6 x 40/100G QSFP28 ports 96 x 1/10/25G SFP28 ports 2 x 10G SFP+ management ports 1 x RJ45 serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports

S9601-104BC

High density, Multi-function Aggregation Router with TCAM Option Supports SyncE and IEEE 1588 4 x 40/100/200G QSFP56 ports 4 x 40/100G QSFP28 ports 96 x 1/10/25G SFP28 ports Compact form factor with a depth of 440mm 2 x 10G SFP+ management ports 1 x RJ45 serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports

Qumran2c

Time Sensitive Networking (TSN)

OpenZR+

Hot swappable PSU & Fan

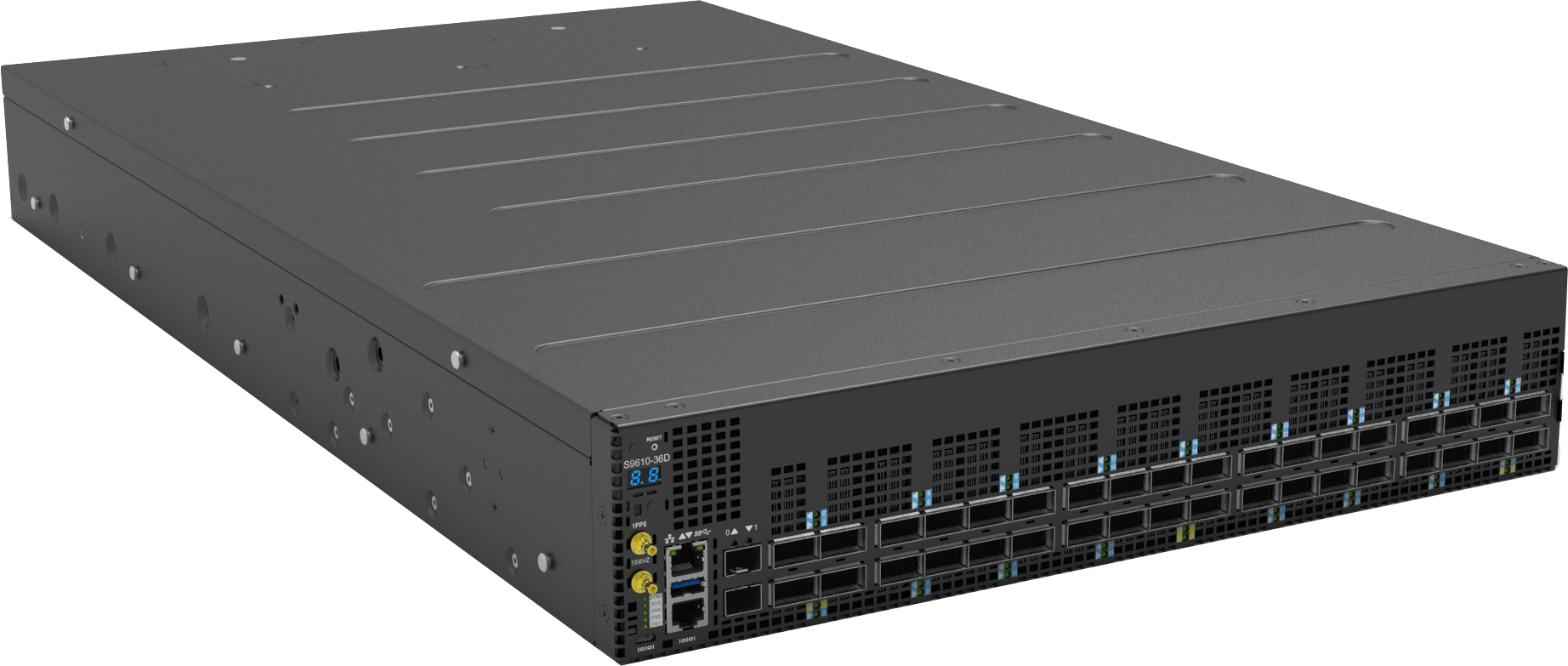

S9600-56DX

400G Multi-function Aggregation Router Supports TSN, SyncE and IEEE 1588 8 x 40/100/400G QSFP-DD ports 48 x 40/100G QSFP28 ports 4 x 1/10/25G SFP28 (MUX configurable from Port-0) 1 x RJ45 serial console port 1 x Micro USB serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports Partners and Compliances:

Qumran2c

Time Sensitive Networking (TSN)

OpenZR+

Hot swappable PSU & Fan

Class C timing accuracy

400G

S9610-36D

Multi-function Aggregation Router Supports SyncE and IEEE 1588 36 x 400G QSFP-DD ports supporting OpenZR+ 2 x 10G SFP+ management ports 1 x RJ45 serial console port 1 x Micro USB console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A port 1PPS and 10MHz timing ports

Jericho2c+

Redundant PSU & Fan

OpenZR+

TIP Bronze Badge

Class C timing accuracy

400G

S9600-72XC

High density, Multi-function Aggregation Router with TCAM Option Supports SyncE and IEEE 1588 8 x 40/100G QSFP28 ports 64 x 1/10/25G SFP28 ports 2 x 10GBase SFP+ management ports 1 x RJ45 serial console port 1 x Micro USB serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports Partners and Compliances:

Redundant PSU

Redundant Fan

Qumran2c

Time Sensitive Networking (TSN)

TIP Bronze Badge

Class C timing accuracy

S9600-64X

High density, Multi-function Aggregation Router Supports SyncE and IEEE 1588 64 x 40/100G QSFP28 ports 4 x 1/10/25G SFP28 ports (break out from Port 0) 1 x RJ45 serial console port 1 x Micro USB serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports Partners and Compliances:

Qumran2c

Time Sensitive Networking (TSN)

Hot swappable PSU & Fan

Class C timing accuracy

S9610-48DX

400G Multi-function Aggregation Router Supports SyncE and IEEE 1588 8 x 100/400G QSFP-DD ports 40 x 40/100G QSFP28 ports 4 x 1/10/25G SFP28 (MUX configurable from Port-0) 1 x RJ45 serial console port 1 x Micro USB serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, BITS and ToD timing ports

Qumran2c+

Timing synchronization

Redundant PSU & Fan

OpenZR+

Hot swappable PSU & Fan

Class C timing accuracy

S9600-28DX

400G Multi-function Aggregation Router Supports TSN, SyncE and IEEE 1588 4 x 40/100/400G QSFP-DD ports 24 x 40/100G QSFP28 ports 4 x 1/10/25G SFP28 (MUX configurable from Port-0) 1 x RJ45 serial console port 1 x Micro USB console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports

Qumran2c

Time Sensitive Networking (TSN)

OpenZR+

Hot swappable PSU & Fan

Class C timing accuracy

400G

S9600-30DX

Multi-function Aggregation Router Supports SyncE and IEEE 1588 6 x 40/100/400G QSFP-DD ports supporting OpenZR+ 8 x 40/100G QSFP-DD ports supporting OpenZR+ 16 x 40/100GE QSFP28 ports 2 x 10GBase SFP+ management ports 1 x RJ45 serial console port 1 x Micro USB console port 1 x 100/1000M RJ45 management port 1 x USB 2.0 Type-A general purpose port GNSS, 1PPS, 10MHz, ToD, and BITS timing ports Partners and Compliances:

Jericho2

Time Sensitive Networking (TSN)

OpenZR+

TIP Bronze Badge

Class C timing accuracy

400G

S9600-32X

Multi-function Aggregation Router Supports SyncE and IEEE 1588 32 x 40/100G QSFP28 ports 4 x 1/10/25G SFP28 ports (break out from Port 0) 1 x RJ45 serial console port 1 x Micro USB serial console port 1 x 100/1000M RJ45 management port 1 x USB 3.0 Type-A general purpose port GNSS, 1PPS, 10MHz, and ToD timing ports Partners and Compliances:

Redundant PSU

Redundant Fan

Qumran2c

Time Sensitive Networking (TSN)

TIP Bronze Badge

Class C timing accuracy
