High Density 800G Disaggregated Core and Edge Router


High Density 800G Disaggregated Core and Edge Router

  • Disaggregated Open Router (DOR) for AI/ML and 800G transport network
  • Distributed Disaggregated Chassis (DDC) “Line Card” white box

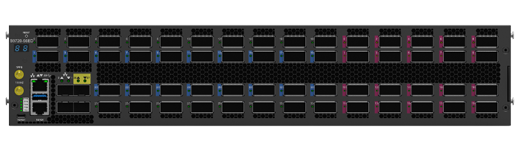

  • 18 x 800G or 36 x 400G QSFP-DD service ports
  • 20 x 800G QSFP-DD fabric ports
  • 1 x RJ45 serial console port
  • 1 x Micro USB console port
  • 2 x 10G SFP+ management ports
  • 1 x 100/1000M RJ45 management port
  • 1 x USB 3.0 Type-A general purpose port

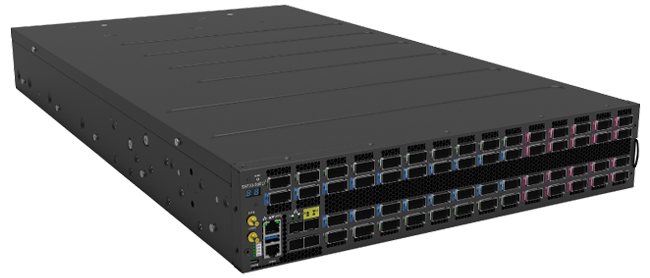

The UfiSpace S9720-56ED is a 18 x 800G disaggregated open router that evolves the network to a 800G network, which enables next generation of 5G services and AI/ML applications.
The S9720-56ED can be deployed as a standalone device or within a core switching cluster as a "line card" element within the distributed disaggregated chassis.
As a standalone router, the S9720-56ED can be deployed at the edge network to enable transport services over a scalable next generation Telecom network.
When coupled with UfiSpace's fabric switch, the S9720-56ED becomes a building block for the distributed disaggregated chassis (DDC). The DDC allows network service providers to implement a pay-as-you-grow model when scaling core network capacities with a S9720-56ED cluster scaling up to 921.6Tbps. With the high radix, low latency and hardware based failover, the S9720-56ED can fulfill the strigent demands of next generation transport network as well as AI/ML workload.

  • High density 800G line card router with 14.4Tbps switching capacity
  • Functions as standalone  or build DDC clusters up to 921Tbps
  • Full SyncE and PTP support with Class C timing accuracy facilitates next generation 5G applications
  • Configurable interfaces with 800G and 400G facilitate the migration from 400G to 800G network
  • Support 400G QSFP-DD ZR+ enables seamless IPoDWDM transport network
  • MACsec support on all ports enables extra security
  • Suitable for core network or AI/ML applications

For additional information or samples of our S9720-56ED, please contact our sales team.


For additional information or samples of our S9720-56ED, please contact our sales team.

Processor Intel® Icelake-D 8-Core @ 2.1GHz
Memory 64GB DDR4
Storage 256GB SSD
ASIC Broadcom Jericho3 BCM88860



2RU, 436W x 762D x 87.7H  mm (17.17" x 30" x 3.45")

 Weight: 33 kg (72.75 lbs)

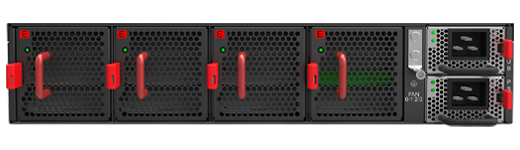

Redundancy 1+1 Hot swappable power units
3+1 Hot swappable fan units
Power Specs. AC input: 200 to 240V, 16A
DC input: -40 to -72V, 80A
Typical power: 920.6 Watts (no transceiver)
Operating Specs. Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating humidity: 5% to 85% (RH), non-condensing
Non-Operating Specs.  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 93% (RH), non-condensing
