S9502-16SMT
蜂巢基地台回傳路由器

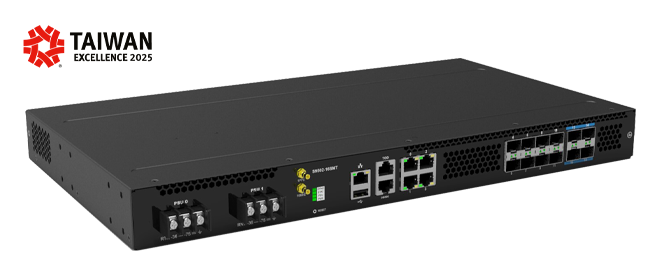

S9502-16SMT
16-Port, 100M/1/10G 蜂巢基地台回傳路由器
- Fanless Disaggregated Cell Site Gateway Router
- Supports SyncE, and IEEE 1588
- 4 x 1/10G SFP+ ports
- 8 x 100M/1G SFP ports
- 4 x 100M/1G RJ45 ports
- 1 x RJ45 serial console port
- 1 x 100/1000M RJ45 management port
- 1 x USB 2.0 Type-A general purpose port
- 1PPS, 10MHz, and ToD timing ports
- Partners and Compliances:
概論特色規格應用下載
概論
高效多功的S9502-16SMT蜂巢基地台回傳路由器(DCSG),採開放式網路架構設計,可滿足不斷變化的網路回程傳輸需求,協助電信運營商快速且經濟地佈建5G網路架構,提升服務靈活性。無風扇設計降低音量及用電量,適合佈建於對噪音及耗電要求嚴苛的網路場域。
採用高效能 Broadcom Qumran-UX 商用芯片及雙核中央處理器,較少的動件設計提升品質與可靠性,減少因元件磨損老化所需的維修,S9502-16SMT 適合佈建於較偏遠的基站,較低的維修頻率節省因維修所需的花費。
S9502-16SMT 配置高速埠口設計(100M/1G RJ45、1G SFP 和 10G SFP+),相容於舊款及5G 基頻單元,完整時間同步界面(ToD、1PPS和10MHz),符合5G時間同步規範 (SyncE and IEEE 1588v2)。
特色
- Class C timing accuracy
- Supports SyncE and IEEE 1588v2 (T-BC/OC, T-TC, T-TSC)
- Integrated Stratum 3E OCXO with optional hold over performances
- Rich timing input/output interfaces: ToD, 1PPS, and 10MHz
- Supports 100M/1G for legacy, 10G for next gen. services
- 1GB deep buffering
- Reduced noise and power consumption
- Fanless design to reduce maintenance
- 1+1 power supplies with redundancy support
- 1 RU compact design, suitable for industry standard 19" racks
規格
S9502-16SMT的產品各類相關文件或樣品需求,歡迎聯繫我們的銷售團隊
硬體規格
處理器 | Intel Denverton-NS Dual-Core @ 1.6GHz |
記憶體 | 8GB DDR4 |
儲存技術 | 32GB SSD |
ASIC | Broadcom Qumran-UX BCM88273 |
機箱規格 | 1RU, 440W x 250D x 43.5H mm (17.32" x 9.84" x 1.713") Weight: 4.32 kg (9.52 lbs) |
備援配置 | 1+1 Fixed power units |
環境規格
電源供應器 | AC input: 100 to 240V, 2A DC input: -36V to -75V, 4.5A Typical power: 45.1 Watts (no transceiver) |
操作環境規格 | Operating temperature: -40°C to 65°C (-40°F to 149°F) Operating humidity: 5% to 85% (RH), non-condensing |
儲存環境規格 | Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 93% (RH), non-condensing |
