Optimizing AI Cluster Interconnect with Dual Platform Selection

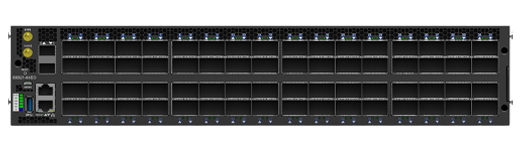

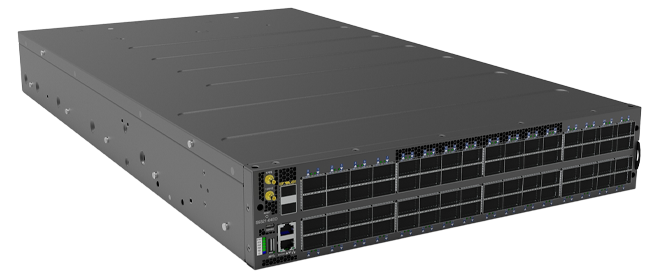

S9321-64EO

800G Datacenter Switch for AI/ML

  • 2RU, 800G Data Center Spine Switch for AI/ML
  • 51.2Tbps switching capacity
  • 64 x 800GE OSFP ports
  • 2 x 25GE SFP28 ports
  • 1 x 100/1000M RJ-45 OOB management port
  • 1 x RJ45 serial console port
  • 1 x USB 3.0 Type-A port
概論

Next generation cloud service applications not only consume more data, it requires service providers to build more flexible, agile and scalable networks to meet the increasing demands of their customers.
The evolution to 800G will provide data centers with the capability to meet capacity and utilization demands of AI application. The S9321-64EO 800G data center switch will provide data centers with a rich set of features such as advance adaptive routing, powerful load balancing and end-to-end congestion control to address the high performance networking demands of AI/ML network to minimize the job completion time (JCT).

特色
  • Hardware-based encapsulation includes Multiprotocol Label Switching(MPLS), and generic routing encapsulation(GRE)
  • Enhanced buffering and traffic management with Priority-based Flow Control (PFC) and Enhanced Transmission Selection(ETS)
  • 5nm process technology delivers unmatched power efficiency and performance
  • Hardware-based link failover  Improves network resiliency and reduces JCT
  • Advanced adaptive routing and end-to-end congestion control capabilities
  • Designed to handle the large, low entropy flows typical of AI/ML  workloads

For additional information or samples of ourS9321-64EO, please contact our sales team.

規格

S9321-64EO的產品各類相關文件或樣品需求,歡迎聯繫我們的銷售團隊

硬體規格
處理器 Intel® Icelake-D 4-Core @ 1.9GHz
記憶體     32GB DDR4
儲存技術 128GB SSD
ASIC Broadcom Tomahawk5 BCM78900
BMC

AST2620

機箱規格

2RU, 436W x 762D x 87.7H  mm (17.17" x 30" x 3.45")

Weight: 31.07 kg (68.49 lbs)

風扇配置 1+1 Hot swappable power units
3+1 Hot swappable fan units
環境規格
電源規格 AC input: 200 to 240V, 16A
DC input: -40 to -72V, 80A
Typical power: 756 Watts (no transceiver)
操作環境規格 Operating temperature: 0°C to 40°C (32°F to 104°F)
Operating humidity: 5% to 95% (RH), non-condensing
儲存環境規格  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 95% (RH), non-condensing
