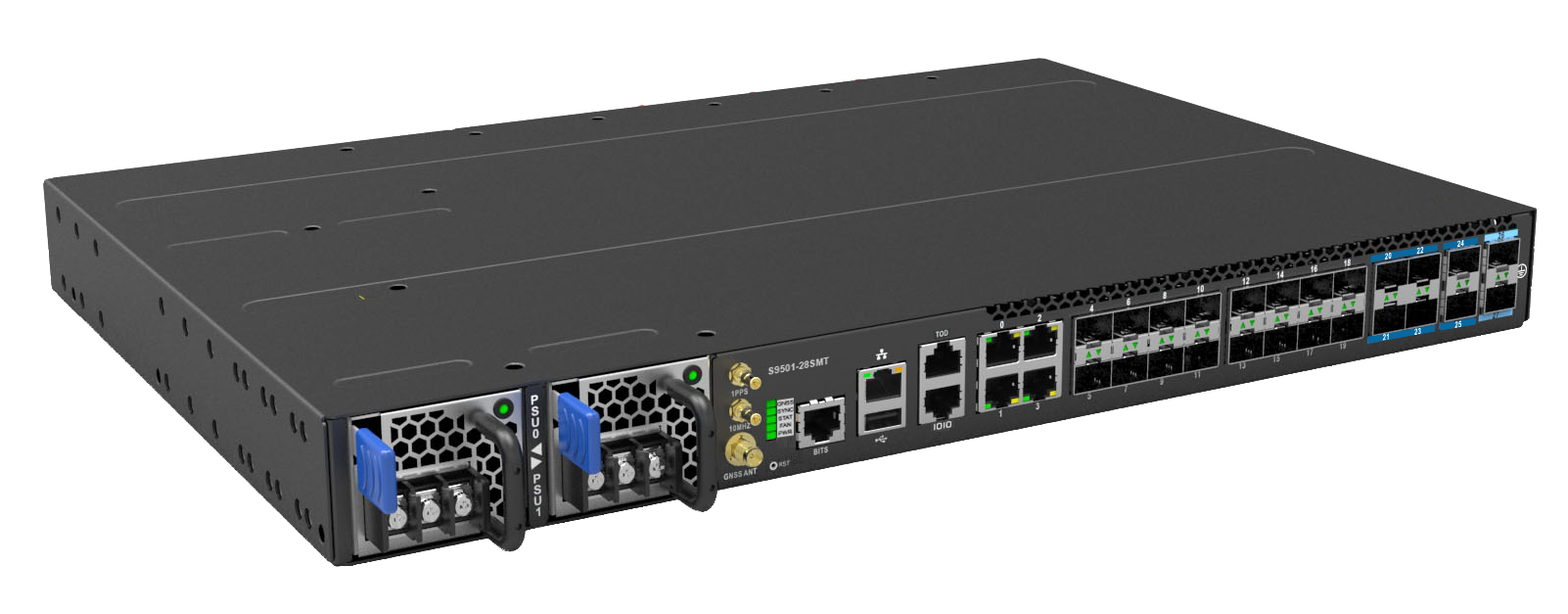

S9501-28SMT

28-port, 1/10GE 蜂巢基地台回傳路由器

  • Full featured, Economic Cell Site Gateway
  • Supports SyncE and IEEE 1588

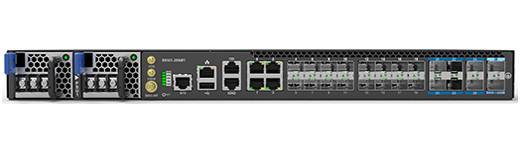

  • 4 x 1GE RJ45 ports
  • 16 x 100M/1GE/2.5GE SFP ports
  • 8 x 1GE/2.5GE/10GE SFP+ ports
  • 1 x RJ45 serial console port
  • 1 x 1000 Base-T Ethernet port for Out-of-Band management
  • 1 x USB 2.0 Type-A general purpose port
  • GNSS, 1PPS, 10M, ToD, and BITS timing ports
概論

UfiSpace S9501-28SMT 蜂巢基地台回傳路由器(DCSG),是一款可兼容於傳統BBU設備的創新設計,亦可實現解構式開放網絡架構的佈建,同時滿足不斷變化的網路回傳需求,協助電信服務運營商從傳統網路迅速佈建5G服務架構。

S9501-28SMT 採高速埠口設計(100M/1G RJ45、1GE SFP 和 10GE SFP+),完整時間同步界面(ToD、BITS、1PPS 和 10MHz)和BMC遠程監控管理功能。採用 Broadcom Qumran-UX 商用芯片,提供 120GB 交換容量、125Mpps 數據吞吐量和 1GB 深度緩衝區,符合不斷變化的市場的需求。

S9501-28SMT適用於戶外設備安裝,精實的尺寸設計可安裝於小型機櫃中。S9501-28SMT搭載熱插拔風扇及電源供應器,無須關閉整個系統即可進行維護作業,降低維護成本。


特色
  • Utilizes UfiSpace timing module
  • Supports SyncE and IEEE 1588v2 (T-GM, T-BC, T-TC, T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Class C timing accuracy support
  • Rich timing input/output interfaces: ToD, BITS, 1PPS and 10MHz
  • Integrated GNSS receiver with passive or active antenna support
  • 1GB deep buffering
  • BMC for remote monitoring and management
  • 2 hot swappable power supplies with 1+1 redundancy support

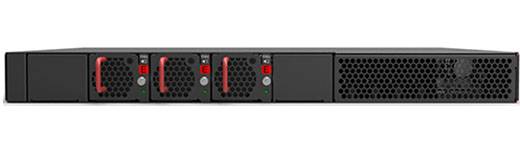

  • 3 hot swappable fan modules with 2+1 redundancy support
  • 1 RU compact design with 302mm depth suitable for standard 19" racks
規格
硬體規格
處理器 Intel Denverton-NS C3508 4 Cores @1.6GHz
記憶體     1x 8GB DDR4 SO-DIMM with ECC
儲存技術 1x 32GB SSD
ASIC Broadcom Qumran-UX BCM88270
機箱規格 1RU, 440w x 43.5h x 302d mm (17.32" x 1.713" x 11.89")
Weight: 6.6 kg (14.55 lbs)
風扇配置 Hot swappable, 1+1 redundant PSU
Hot swappable, 2+1 redundant fans
環境規格
電源供應器 AC input: 100 ~ 240V, 3~1.5A, 50-60Hz
DC input: -36 ~ -75V,  8~4A
Max power: 200 Watts
操作環境規格 Operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating humidity: 5% to 93% (RH), non-condensing
儲存環境規格  Storage temperature: –40°C to 70°C (–40°F to 158°F)
Storage humidity: 5% to 85% (RH), non-condensing
