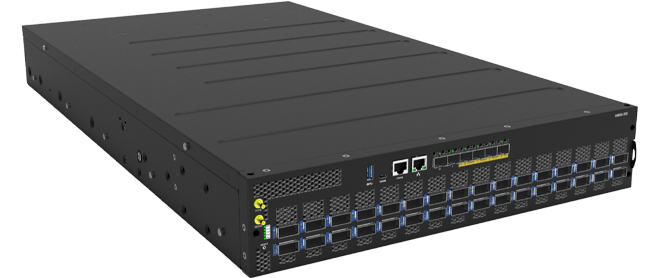

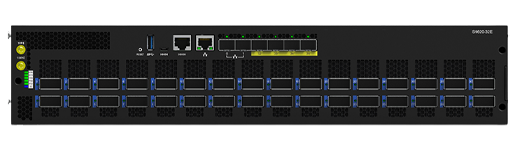

The S9620-32E is a high-capacity 32 x 800G router purpose-built for next-generation IP transport networks. Leveraging the advanced Qumran3D platform, it delivers exceptional forwarding scale, power efficiency, and feature richness to address the rapidly evolving demands of carrier-grade backbone and metro aggregation networks.

As AI applications accelerate the exponential growth of east-west and edge-to-core traffic, transport networks face increasing pressure to deliver higher bandwidth, lower latency, and greater flexibility. The S9620-32E rises to this challenge by providing a compact, power-optimized solution that supports 800G ports with flexible breakout options, enabling seamless scalability and efficient bandwidth utilization.

With robust support for segment routing, MPLS, and advanced QoS, the S9620-32E ensures reliable service delivery and traffic engineering across complex network topologies. Its telemetry-ready architecture and hardware-based forwarding capabilities make it an ideal choice for operators looking to future-proof their transport infrastructure in the age of AI-driven connectivity.

特色

• Support 400G/800G ZR and ZR+
• MACsec support on all ports enables extra security
• Class C timing accuracy
• Supports SyncE and IEEE 1588v2 (T-BC/OC, T-TC, T-TSC)
• Integrated Stratum 3E OCXO with optional hold over performances
• Rich timing input/output interfaces: 1PPS and 10MHz
• 32GB deep buffering
• Built-in large size TCAM provides million grade routing entry
• BMC for remote monitoring and management

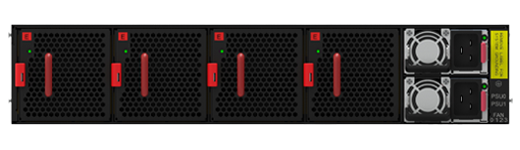

• 2 hot swappable power supplies with 1+1 redundancy support
• 4 hot swappable fan modules with 3+1 redundancy support
• 2 RU compact design, fit into industry standard ETSI 600mm racks
• For additional information or samples of our S9620-32E, please contact our sales team.
