S9510-28DC

Disaggregated Cell Site Gateway Router
S9510-28DC-front-angle

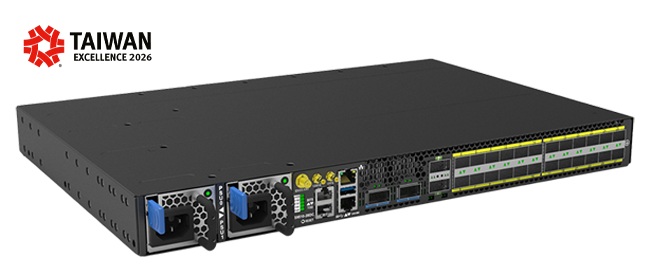

S9510-28DC-front
S9510-28DC-back
S9510-28DC-front-angle
S9510-28DC-front
S9510-28DC-back

S9510-28DC

28-Port, 25/100/400G 蜂巢基地台回傳路由器

  • Multi-function Disaggregated Cell Site Gateway Router
  • Supports FlexE, OpenZR+, TSN, SyncE, and IEEE 1588
  • 2 x 100/400G QSFP-DD ports
  • 2 x 40/100G QSFP28 ports
  • 24 x 10/25G SFP28 ports
  • 1 x RJ45 serial console port
  • 1 x 100/1000M RJ45 management port
  • 1 x USB 3.0 Type-A general purpose port
  • GNSS, 1PPS, 10MHz, ToD, and BITS timing ports
概論

高效多功的S9510-28DC 蜂巢基地台回傳路由器（DCSG），採開放式硬體架構設計，滿足不斷變化的網路回程傳輸需求，讓電信運營商能夠運用開放式網路技術，降低成本並迅速佈建5G架構來提供更優質的服務。

搭載高效8核心處理器與 28 個高速埠口設計，包括400G FlexE端口和OpenZR+功能，並於硬體支援5G時間同步規範 (SyncE 及 IEEE 1588v2) 。S9510-28DC 符合前傳網路802.1CM 時效性網路 (TSN) 標準，是xHual 應用的最佳選擇。

S9510-28DC可安裝於室內或戶外機房，搭載熱插拔風扇及電源供應器，無須關閉整個系統即可進行維護作業，降低維護成本。


S9510-28DC的產品各類相關文件或樣品需求，歡迎聯繫我們的銷售團隊

特色
  • Class C timing accuracy
  • Supports Time Sensitive Networking (TSN) for low packet loss and low delay variation
  • Supports Flexible Ethernet (FlexE) for flexible bandwidth utilization
  • Supports SyncE and IEEE 1588v2 (T-GM, T-BC/OC, T-TC, T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Rich timing input/output interfaces: ToD, 1PPS, BITS and 10MHz
  • Internal GNSS receiver for master clock implementations
  • 2GB deep buffering
  • BMC for remote monitoring and management
  • 2 hot swappable power supplies with 1+1 redundancy support
  • 5 hot swappable fan modules with 4+1 redundancy support
  • 1 RU compact design, suitable for industry standard 19" racks

S9510-28DC的產品各類相關文件或樣品需求，歡迎聯繫我們的銷售團隊

規格

S9510-28DC的產品各類相關文件或樣品需求，歡迎聯繫我們的銷售團隊

硬體規格
處理器 Intel Denverton-NS 4-Core @ 1.6GHz (Standard)
Intel Denverton-NS 8-Core @ 1.7GHz (Premium)
記憶體     8GB DDR4 (Standard)
16GB DDR4 (Premium)
儲存技術 32GB SSD (Standard)
128GB SSD (Premium)
ASIC Broadcom Qumran2a BCM88483
BMC AST2620
機箱規格 1RU, 440W x 302D x 43.5H mm (17.32" x 11.89" x 1.71")
Weight: 4.9 kg (10.80 lbs)
備援配置 1+1 Hot swappable power units
4+1 Hot swappable fan units
環境規格
電源供應器 AC input: 100 to 240V, 6A
DC input: -36V to -75V, 16A
Typical power: 105 Watts (no transceiver)
操作環境規格 Operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating humidity: 5% to 93% (RH), non-condensing
儲存環境規格  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 85% (RH), non-condensing
應用

Mobile Backhaul

Broadband Network Gateway

Private 5G
