S7801-54XS

10G 數據中心交換器

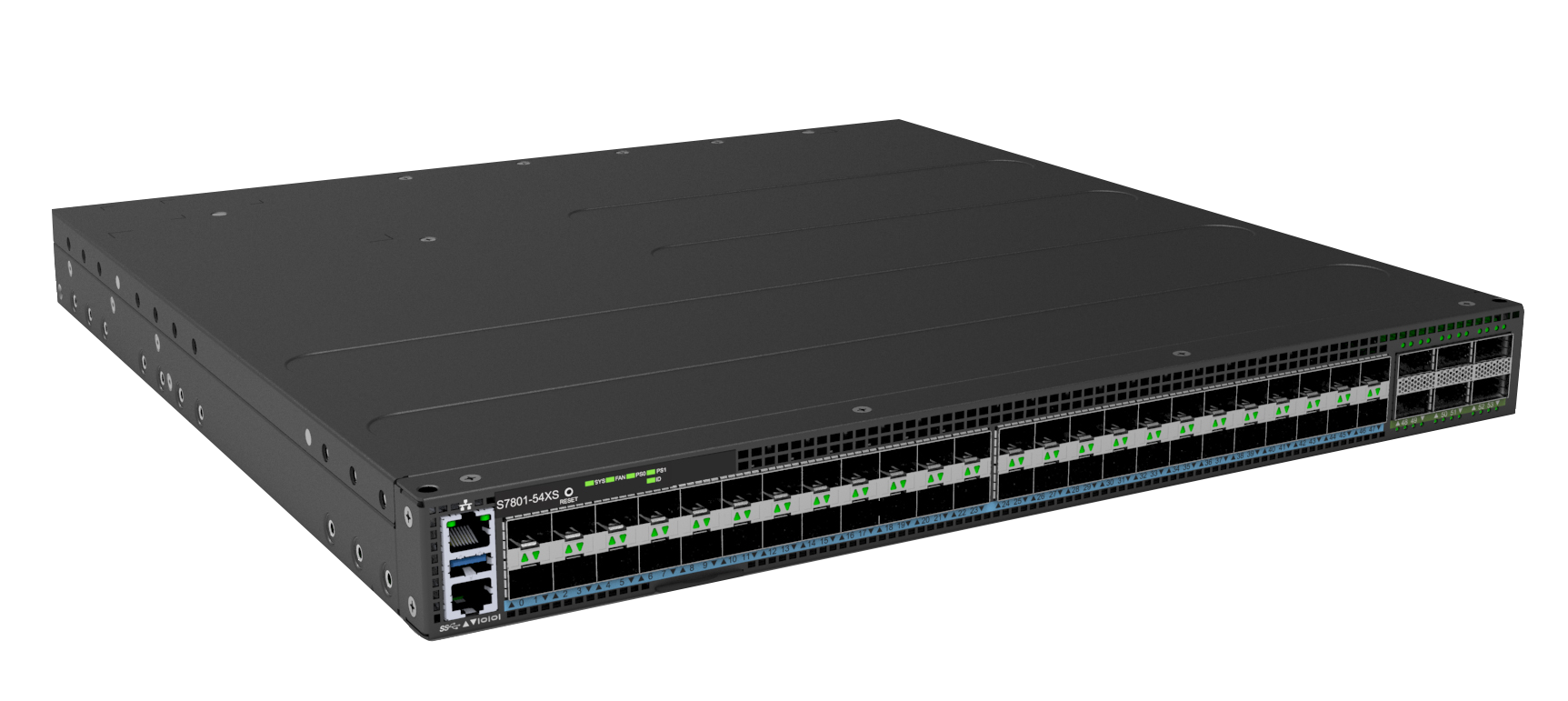

S7801-54XS

48 x 10G SFP+ & 6 x 100G QSFP28 Ports

  • 1 RU, Data Center Leaf/ToR Switch
  • 1.28Tbps switching capacity
  • 6 x 40/100G QSFP28 ports
  • 48 x 1G/10G SFP+ ports
  • 1 x 100/1000M RJ-45 management port
  • 1 x RJ45 serial console port
  • 1 x USB 3.0 Type-A port

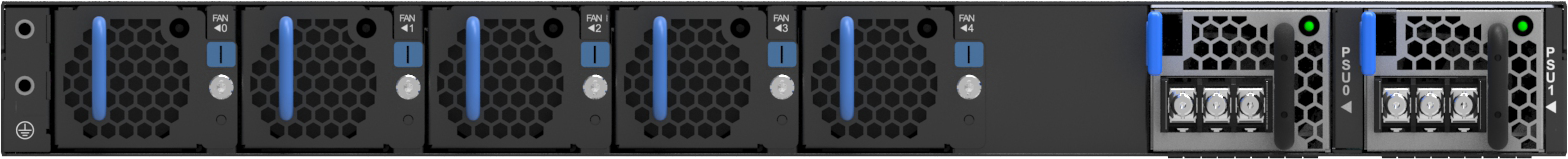

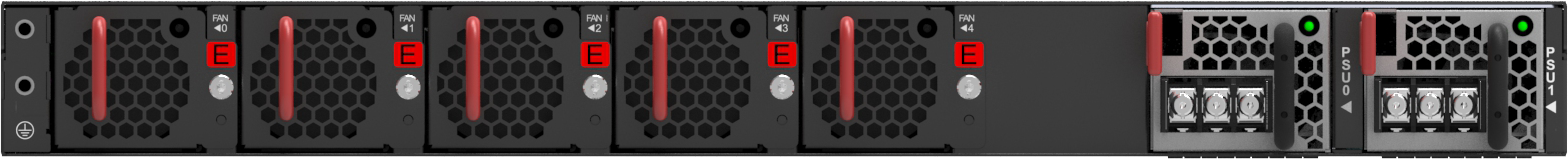

  • Front-to-back or Back-to-front airflow available
  • Supports ONIE
概論

The UfiSpace S7801-54XS is a high-performance, data center networking white box switch that is designed to address the fast growing segment of the data center switching market and the needs to push service capacity to the next level.

With 6 x 100G QSFP28 ports and 48 x 10G SFP+ ports, the S7801-54XS data center switch utilizes the Broadcom Trident3-X5 silicon to provide intelligent features and structured management for centralized servers to enable high-efficiency Ethernet connectivity for data center services.

These switches deliver performance and intelligence to the network edge in a flexible 1RU form factor that helps reduce infrastructure and administrative costs.

The S7801-54XS brings data centers into the future networking with a powerful Intel Denverton 4-core processor and high-speed 10G and 100G interfaces. It comes with redundant, hot swappable components for convenience, increased availability, reliability and lower costs of maintenance.

S7801-54XS的產品各類相關文件或樣品需求,歡迎聯繫我們的銷售團隊.

特色
  • High density 10G service interfaces
  • 1.28Tbps switching bandwidth capacity
  • Broadcom Trident3-X5 Silicon
  • Front-to-back and Back-to-front airflow options
  • Flexible and efficient data processing
  • On-chip packet buffers minimize the data latency
  • Enable real-time network status visibility
  • BMC for monitoring and managing equipment health status
  • 1 + 1 hot swappable power supply field replaceable units
  • 4 + 1 hot swappable fan field replaceable units

S7801-54XS的產品各類相關文件或樣品需求,歡迎聯繫我們的銷售團隊.

規格

S7801-54XS的產品各類相關文件或樣品需求,歡迎聯繫我們的銷售團隊.

硬體規格
處理器 Intel Denverton 4-Core @ 1.6GHz
記憶體     8GB DDR4
儲存技術 32GB SSD
ASIC     Broadcom Trident3-X5 BCM56771
機箱規格 1RU, 440W x 440D x 43.8H mm (17.32" x 17.32" x 1.72")
Weight: 8.9 kg (19.62 lbs)
備援配置 1+1 hot swappable power units
4+1 hot swappable fan units
環境規格
電源規格

AC input: 100 to 240V, 6A
DC input: -36 to -75V, 16A

Typical power: 113 Watts (no transceiver)

操作環境規格 Operating temperature:  0°C to 45°C (32°F to 113°F)
Operating humidity: 5% to 95% (RH), non-condensing
儲存環境規格  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 95% (RH), non-condensing
